The ST9200 POS System comes in customizable colors. Black remains the top seller, while red, white and silver are also popular. Its minimalist and premium design looks especially stylish in vibrant finishes.

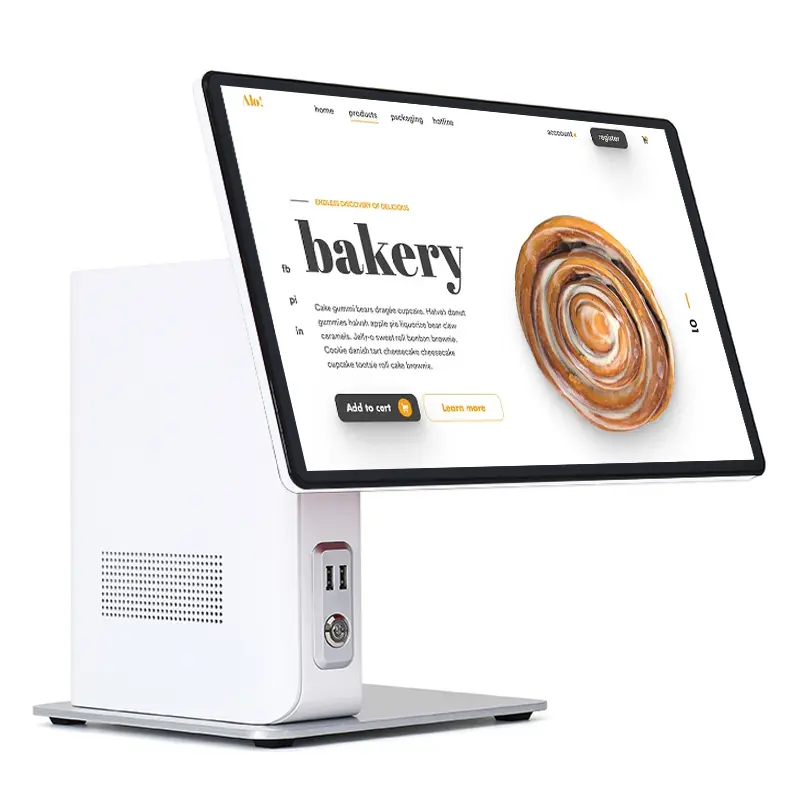

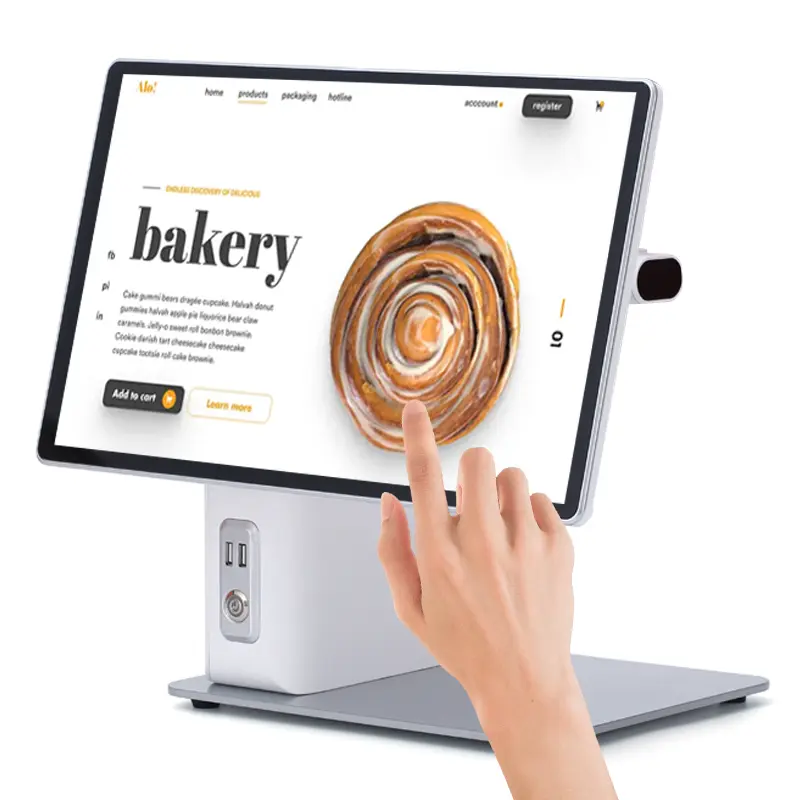

15.6inch Single Screen White Point of Sale Equipment
PRODUCT FEATURES
Model: ST9200 Point of Sale Equipment
Housing Material: Full-metal die-cast
Display: 15.6inch Capacitive Touch Panel 1366*768/1920*1080
Supported OS: Windows/ Linux/ Android
External Point of Sale Equipment Peripherals: MSR, 11.6″/15″/15.6″ Customer Display, Scanner & Printer Box.
The ST9200 is a professional point of sale equipment designed for retail environments, combining durability with advanced functionality. Built with a sturdy die-cast aluminum frame, it ensures reliable performance in high-frequency commercial settings.
The POS hardware equipment features a neat and concealed wiring design, helping to maintain a clean and organized workspace.
Its flexible dual-screen configuration—rotatable up to 62° and available in multiple sizes: 11.6inch, 15inch, and 15.6inch.
The Touchscreen POS equipment features extensive peripheral connectivity. It can be paired with an optional all-in-one printer-scanner for enhanced integration and space efficiency, and maintains full compatibility with mainstream motherboards.
It Ideal for retail and hospitality businesses, it provides a stable, customizable, and user-friendly experience for wholesale POS equipment purchasers and users.
Design Your POS
An optional customer display is available in 11.6", 15", or 15.6" sizes. The 15.6-inch display can be configured for vertical orientation, providing distributors with greater flexibility.
An all-in-one scan and print box is available. It can be mounted to the pos terminal base, attached to a swivel for rotation, or placed on the counter. Contact your sales rep before ordering.
Standard packaging is a yellow box, with colorful designs optional. Customize your logo on the pos device, the box, or provide your own design for production.
Key Features
Feature 1: A Neat and Concealed Wiring Design
- Full die-cast aluminum POS hardware equipment: ensures sleek appearance, superior heat dissipation, and long-term durability
- Extra-large base design: provides exceptional stability during operation, ideal for high-intensity Point of Sale environments
- Neat and concealed wiring: maintains a clean and professional Touchscreen POS equipment workspace
- Highly popular model: widely trusted in retail Wholesale POS equipment programs for its robustness and elegant integration
Feature 2: Modular Expansion Pluggable MSR
- Pluggable MSR module: enables easy maintenance in modern POS hardware equipment
- Interchangeable secondary displays: optional sizes include 11.6″, 15″, and 15.6″ for flexible Wholesale POS equipment configurations
- Modular Touchscreen POS equipment design: supports business-specific customization and scalable upgrades
- Reduces lifecycle costs: a key advantage for volume Point of Sale purchasers
Feature 3: Ergonomic Dual-Screen Rotation for Adaptive Use
- 62° rotatable displays: enhance operator comfort in Touchscreen POS equipment
- Ergonomic design: reduces physical strain during extended Point of Sale operations
- Improves customer engagement: ideal for retail and hospitality POS hardware equipment settings
- Flexible viewing angles: a valued feature in customizable Wholesale POS equipment solutions

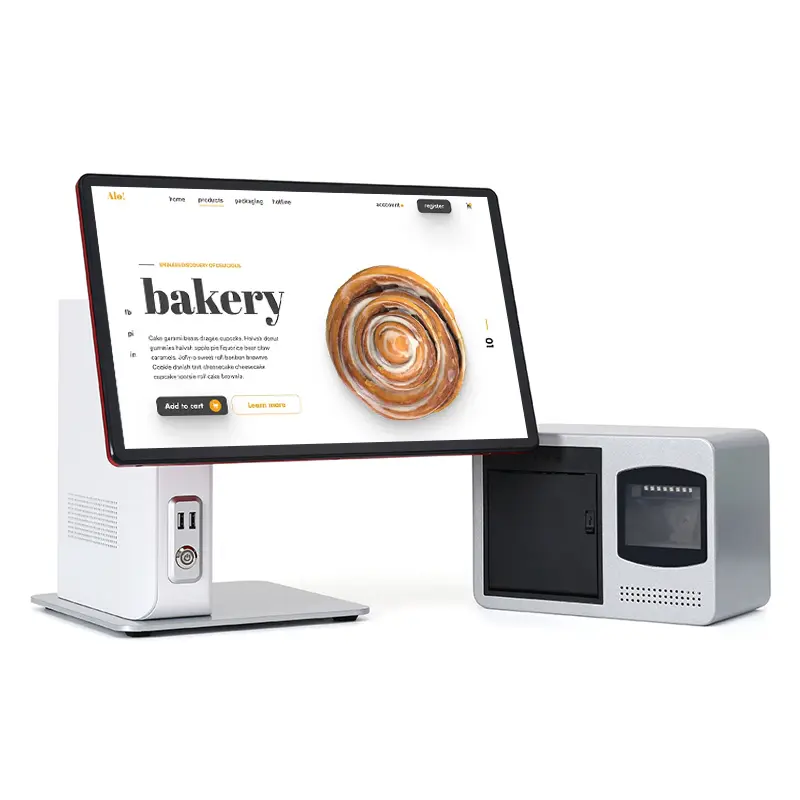

Feature 4: All-in-One Printer-Scanner Option
- Compact all-in-one printer-scanner: easily paired with Touchscreen POS equipment
- 360° rotatable accessory box: enables highly flexible receipt and code handling
- Multi-size base options: accommodate varied counter space requirements in Point of Sale deployments
- Space-efficient integration: helps create clean, professional POS hardware equipment setups
- Customizable configurations: available through our Wholesale POS equipment program – contact us for details
Technical Specifications
ST9200 Product Specification Sheet
| Specification | Windows | Android |
|---|---|---|
| CPU |
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Processor N97(6M Cache, up to 3.60GHz) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption |
1 wifi&BT module, support WIFI 802.11b/g/n protocol 1 RJ45 Ethernet port, support Ethernet |
| OS Support | Linux, Windows 7/8/10, etc. | Android11, Android13 |
| Display Screen | 15.6inch True Flat Screen (16:9) | |
| Resolution | 1366*768/1920*1080 | |
| Touch Screen | Capacitive Touch | |
| Housing Material | Metal | |
| Power Supply | 12V, 5A/ 12V, 7A/ 12V, 10A | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size |
Single Screen 44.5cm*33cm*45cm (8.25KG) Dual Screen 44.5cm*36cm*45cm (10KG) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Interface | USB:6, COM:3, HDMI:1, DC:1, VGA:1, LAN:1, AU:2, DC:1, RJ11:1, COM:2, SIM:1, SD:1, LAN:1, AU:2 | |
| Option |
Customer Display: 11.6”/ 15”/ 15.6” Built-in: WIFI/ Bluetooth Reader: MSR/ RFID/ NFC/ IBUTTON |
|
CPU
Windows
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Android
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz
Memory
Windows
4GB, 8GB, 16GB
Android
4GB, 8GB
Hard Disk
Windows
128GB, 256GB, 512GB
Android
32GB, 64GB
Ethernet
Windows
10M/100M/1000M Self-adaption
Android
1 wifi&BT module, support WIFI 802.11b/g/n protocol
1 RJ45 Ethernet port, support Ethernet
1 RJ45 Ethernet port, support Ethernet
OS / Display / Others
OS: Linux, Windows 7/8/10 ; Android 11/13
Display: 15.6" True Flat (16:9), 1366×768 / 1920×1080
Touch: Capacitive ; Housing: Metal
Power: 12V 5A/7A/10A ; Colors: Black/White/Silver/Red/Orange
Package: Single 44.5×33×45cm (8.25KG) ; Dual 44.5×36×45cm (10KG)
Cert: ROHS, CE, FCC ; Interfaces: USB/COM/HDMI/DC/VGA/LAN/AU/RJ11/SIM/SD
| Area | Specification | Details |
|---|---|---|
| Scanner Area | Pixels | 300,000 |
| Scanning Depth | 2D: ≥7.5mil | |
| 1D: ≥3.9mil | ||
| View Angle | Diagonal 50° | |
| Scanning Angle |
Elevation: ±80° Deflection: ±70° Rotation: 360° |
|
| Printer Area | Printing Method | Direct Thermal Printing |
| Open Method | 1. Press the open cover wrench; 2, through the cover button | |
| Print Length | 100KM | |
| Cutter life | 1,000,000 Times | |
| Printing speed | 250 mm/s (max) | |
| Print span | 72mm (max) | |
| Paper roll diameter | ≤80mm | |
| Mechanical endurance | 100KM | |
| Power Supply | 24V/2A | |
| Material | Aluminium Alloy | |
| Size | 23cm × 12cm × 15.5cm | |
| Weight | 2.1kg | |
Scanner Area
Pixels
300,000
Scanning Depth
2D: ≥7.5mil
1D: ≥3.9mil
1D: ≥3.9mil
View Angle
Diagonal 50°
Scanning Angle
Elevation: ±80°
Deflection: ±70°
Rotation: 360°
Deflection: ±70°
Rotation: 360°
Printer Area
Printing Method
Direct Thermal Printing
Open Method
1. Press the open cover wrench; 2, through the cover button
Print Length
100KM
Cutter life
1,000,000 Times
Printing speed
250 mm/s (max)
Print span
72mm (max)
Paper roll diameter
≤80mm
Mechanical endurance
100KM
General
Power Supply
24V/2A
Material
Aluminium Alloy
Size
23cm × 12cm × 15.5cm
Weight
2.1kg
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
The 2023 partnership between MatsudaPOS and SIGMA Technology successfully introduced our modern, high-performance POS systems to Canadian retail chains, earning praise from store managers.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
we supplied custom touch displays to SRM Integration (Malaysia), a leading semiconductor test processor provider, meeting their unique integration needs for seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing,.
Taiwan – POSIFLEX Product Customization
The ST9200F modular POS system, custom-developed by MatsudaPOS for global leader POSIFLEX, has been a market success since its launch. This project exemplifies our capability to deliver on global OEM/ODM requests.
Why Choose MATSUDAPOS?
Excellent Configuration & Performance
Powered by top-tier Intel/Android processors, our POS hardware equipment delivers smooth and efficient performance, ensuring seamless retail operations even during the busiest hours.
Premium, Space-Saving Design
Our Point of Sale Equipment boasts a high-end, minimalist design with integrated cable management and flexible peripheral options. Ideal for space-constrained environments, it maximizes counter space without sacrificing full functionality.
Simplified Setup & Deployment
From add-on displays and card readers to scanners and printers, our Wholesale POS equipment is designed for easy installation and configuration. This enables both distributors and end-users to achieve rapid deployment with minimal effort.
Exceptional Durability
Engineered with a reinforced metal construction, this Touchscreen POS equipment is built to endure the demands of all-day operation in tough environments, guaranteeing long-term reliability and reduced downtime.
Global Customization (OEM/ODM)
Our expert engineering team provides comprehensive OEM/ODM services, tailoring solutions to meet the specific requirements of global procurement partners and businesses worldwide.
Comprehensive Global Support
Backed by a 3-year warranty and worldwide technical support, our dedicated team is committed to ensuring the success of POS dealers and system integrators.
