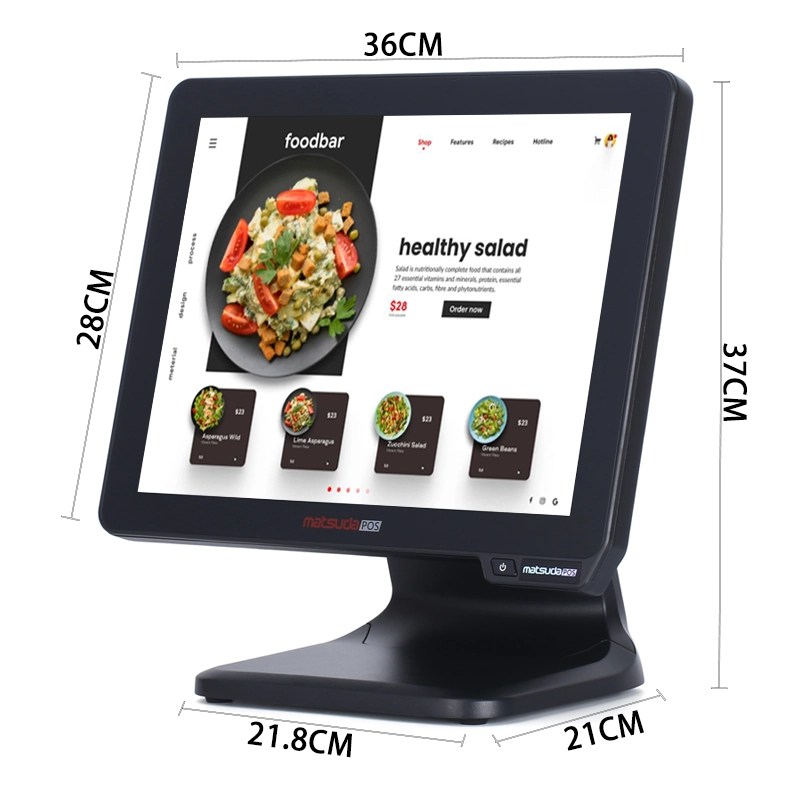

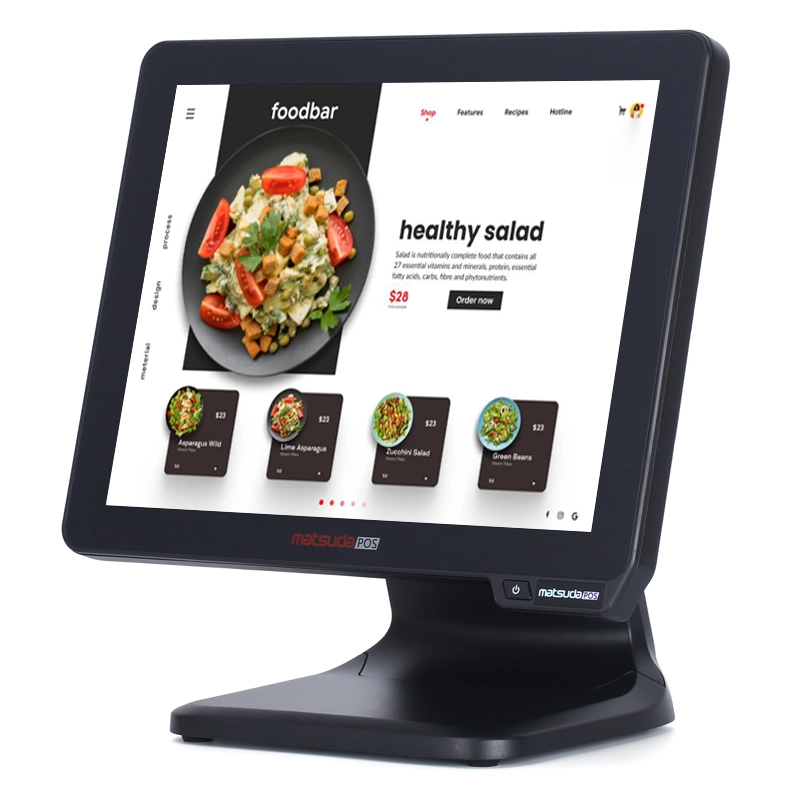

All-in-One 15″ Point of Sale Terminal – Sleek Black Design
PRODUCT FEATURES
Model Number: ST9800
Housing Material: Full-metal die-cast
Display: 15inch Capacitive Touch Panel 1024*768
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 15inch
The MatsudaPOS 15 inch POS is a high-performance point of sale system that helps businesses boost efficiency and improve customer service. Moreover, this 15 POS features a sleek touch screen with responsive 10-point capacitive touch and a durable metal housing, ensuring a professional checkout environment. In addition, it supports powerful Intel processors (i3, i5, N97, N100, J6412, or J4125) for seamless multitasking. Businesses can choose between Windows or Android OS, providing a tailored point of sale experience that meets diverse retail and hospitality needs.
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
- Premium Appearance: The 15 inch POS comes with a full-metal die-cast casing, delivering a high-end look that enhances your point of sale environment.
- Strong & Durable: Its rugged 15 POS structure ensures long-term reliability even under heavy commercial use.
- Superior Heat Dissipation: With excellent thermal conductivity, the POS 15 system stays cool and prevents overheating during peak hours.
- Extended Lifespan: The durable design guarantees stable operation under demanding workloads.
- Professional Design: A seamless and minimalist finish makes this 15 inch POS ideal for professional retail and hospitality settings.
Feature 2: Modular Design
- Flexible Configuration: The 15 inch POS offers a modular point of sale design, supporting slot-in expansion for card readers, secondary displays, and VFD units.
- Distributor-Friendly: Unlike fixed combinations, this 15 POS reduces inventory pressure, simplifying stock management for distributors.
- Easy Installation: End-users can install peripherals on the POS 15 terminal without technical expertise.
- Lower Shipping Costs: Compact packaging minimizes shipping volume and costs.
- Eco-Conscious: Reduced packaging material aligns with sustainable logistics practices.
Feature 3: Hidden Cable Management
- Concealed Wiring: The 15 inch POS has ports at the bottom of the screen, routing cables through the base to keep the point of sale setup tidy.
- Clean & Neat: This 15 POS solution prevents clutter, ensuring an organized and professional checkout counter.
- Enhanced User Experience: The POS 15 creates a professional and elegant environment that improves the customer experience.
- Premium Image: Designed to match modern retail and hospitality aesthetics, it enhances the overall impression of your point of sale area.
Feature 4: 10-point Capacitive Touchscreen
- High Sensitivity: The 15 inch POS features a responsive 10-point capacitive touchscreen for smooth and precise operation in point of sale transactions.
- Durable & Resilient: This 15 POS terminal is resistant to water, oil, and dust, ensuring reliable operation in demanding environments.
- High Brightness: The POS 15 display maintains clarity even under strong lighting.
- Reliable Performance: A protective coating extends the screen’s durability and lifespan.
- Efficient Operation: Fast and accurate touch improves cashier efficiency and the customer experience.
More POS Peripherals Options
Businesses have unique requirements for serving end customers. As a distributor, you can purchase MatsudaPOS 15 inch POS systems flexibly—choose a single-screen setup or add optional devices such as a card reader, VFD display, 9.7-inch secondary screen, or a 15 POS secondary screen. For example, this POS 15 configuration allows you to tailor the perfect point of sale solution for each client, ensuring versatility and efficiency.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose MATSUDAPOS ST9800?
High-Speed Processing: Powered by robust processors and durable components, the 15 inch POS system ensures stable operation even during peak business hours.
Perfect Balance of Size & Function: The 15 POS terminal’s display offers touch precision while maintaining a compact footprint, ideal for busy counters.
Plug-and-Play Convenience: This POS 15 solution allows easy installation and quick setup for businesses.
Durable Hardware Build: Crafted with robust materials, the 15 inch POS withstands long hours of operation in retail and hospitality environments.
Distributor-Friendly Supply Chain: From OEM/ODM customization to fast shipping, MatsudaPOS provides flexible solutions for global distributors.
Comprehensive After-Sales Support: With a 36-month warranty and responsive global support, the POS 15 ensures point of sale operations remain smooth and worry-free.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
