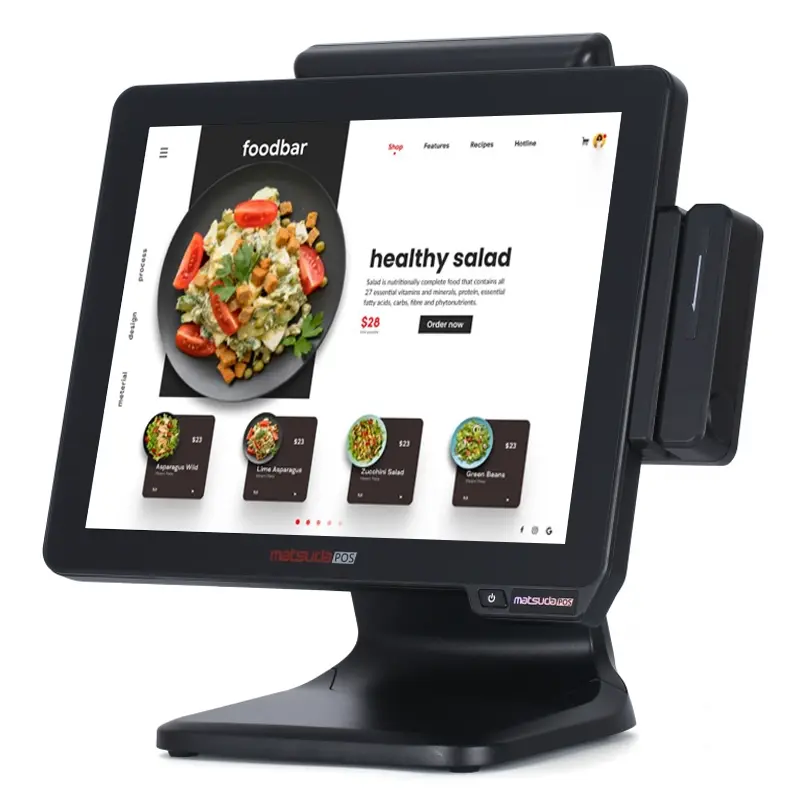

15inch Points of Sale System with VFD & Card Reader
PRODUCT FEATURES
Model: ST9800 points of sale
Housing Material: Full-metal die-cast
Display: 15inch Capacitive Touch Panel 1024*768
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch
Elevate your retail or hospitality business with the versatile ST9800 Points of Sale Terminal. Powered by Intel processors or Android for efficiency, it supports up to 16GB RAM and ample storage for smooth operations. The 15-inch true flat capacitive touchscreen is housed in durable black metal, ensuring both style and strength. With 6x USB, COM, LAN, and multiple display ports, connectivity is seamless. Dealers and integrators can customize with MSR, RFID, NFC, VFD, or secondary displays to meet diverse client needs. Certified with CE and FCC, the ST9800 is a reliable, high-performance point of sale system for retail shops, software providers, and global distributors seeking adaptable POS equipment for sale.
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
Premium Metal Build: The alloy housing provides durability and a professional look, making this point of sale system for retail shops ideal for modern business settings.
Exceptional Durability: Engineered to withstand heavy daily use, ensuring reliable points of sale performance in retail, restaurant, and hospitality environments.
Efficient Cooling: Advanced thermal design keeps the system at optimal temperature, protecting internal components for stable operation.
Long-Term Reliability: Designed for high-volume transactions, this POS system for retail shop delivers consistent, smooth performance for years.
Seamless Integration: Its sleek, universal design blends easily into any commercial space, offering a professional and organized point of sale for sale solution.
Feature 2: Modular Design
Modular Design: Expand effortlessly with peripherals such as card readers, VFD, or customer displays, enabling tailored points of sale solutions for diverse retail and hospitality needs.
Distribution Efficiency: Flexible configurations simplify inventory management for distributors, resellers, and system integrators, making this POS system for retail shop a versatile choice.
Tool-Free Installation: Peripherals can be attached quickly without tools, allowing end-users to set up their point of sale for sale systems easily.
Compact Packaging: Space-saving design lowers freight costs and storage requirements, supporting efficient logistics for global POS dealers.
Sustainable Solution: Eco-conscious packaging reduces material waste while ensuring secure delivery of each point of sale system.
Feature 3: Hidden Cable Management
Bottom Port Design: Smartly positioned bottom ports allow direct cable routing, making POS system installation faster and more efficient.
Clean Counter Space: Hidden wiring ensures a clutter-free checkout, ideal for creating a professional points of sale setup.
Enhanced Customer Impression: A modern, organized point of sale for retail shop improves customer trust and brand image.
Seamless Aesthetic Integration: Sleek design complements contemporary retail and hospitality interiors, elevating any point of sale for sale environment.

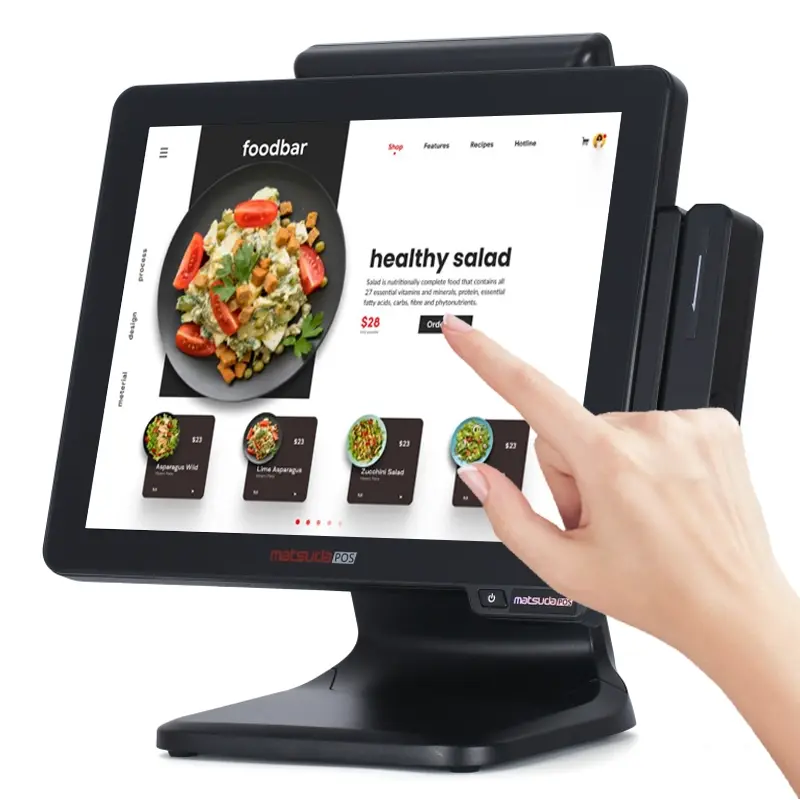

Feature 4: 10-point Capacitive Touchscreen
10-Point Multi-Touch: Delivers fast and precise input, ensuring smooth operation of your POS system for retail shop.
Rugged Construction: Built to resist water, oil, and dust, providing long-term reliability in demanding points of sale environments.
High-Brightness Display: Guarantees crystal-clear visibility under different lighting, enabling efficient point of sale for sale transactions.
Reinforced Screen Protection: Durable coating extends screen life, reducing maintenance and total cost of ownership.
Intuitive Operation: Highly responsive interface accelerates workflows and enhances customer experience at checkout.

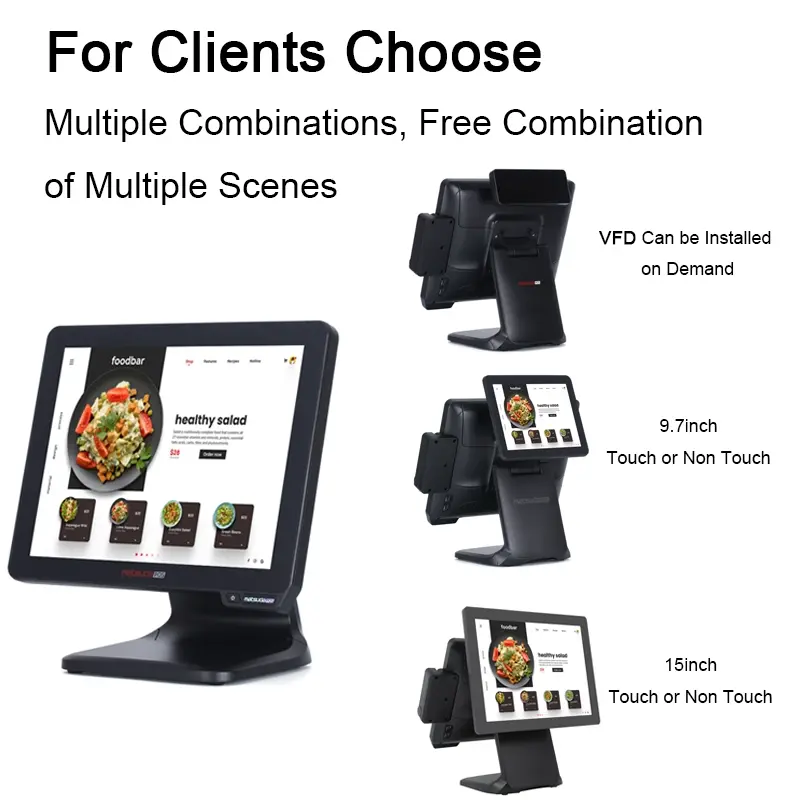

More POS Peripherals Options
MatsudaPOS delivers versatile points of sale solutions designed for global distributors and resellers. Choose a streamlined single-screen POS system for retail shop or expand with card readers, VFD modules, and secondary displays (9.7″ 12″ or 15″). This flexibility allows you to craft tailored point of sale for sale setups for retail, hospitality, and custom projects—ideal for software integrators and solution providers seeking reliable, scalable POS equipment.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 12″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose MATSUDAPOS?
Powerful & Reliable
Powered by high-performance Intel and Android processors with industrial-grade components, this 15-inch POS terminal ensures smooth, stable operation even during peak business hours.Space-Smart Design
The compact 15-inch true flat display saves valuable counter space while providing a generous touch interface for efficient transactions.Quick Setup & Operation
Tool-free installation and an intuitive multi-touch interface enable rapid deployment, minimizing downtime and accelerating ROI.Built to Last
Durable metal housing and reinforced screen protection withstand daily wear, ensuring long-term reliability in retail and hospitality environments.Global Customization
Flexible configuration options with card readers, VFDs, and secondary displays, plus OEM/ODM services, adapt easily to diverse distributor and reseller needs worldwide.Partner-Focused Support
Backed by a 36-month warranty and dedicated global support team, ensuring reliable service and long-term partnership growth.FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
