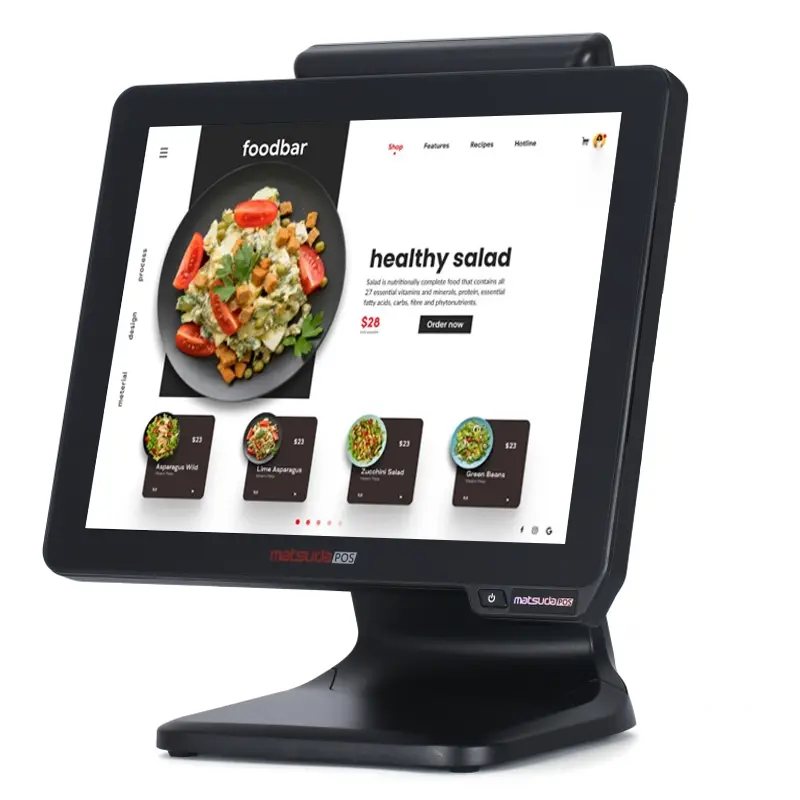

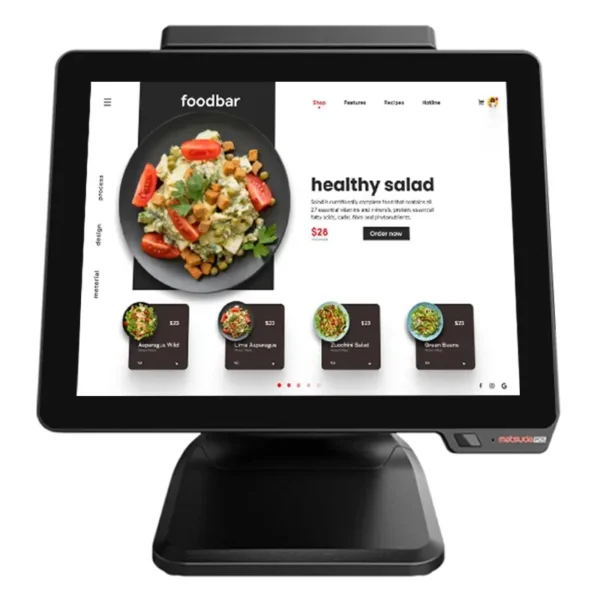

15inch POS Equipment with VFD Display
PRODUCT FEATURES
Model: ST9800 pos equipment
Housing Material: Full-metal die-cast
Display: 15inch Capacitive Touch Panel 1024*768
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch
Elevate your business with the ST9800 15-inch True Flat POS System, a high-performance POS equipment solution designed for efficiency. Featuring Windows and Android OS support, Intel/ARM processors, expandable memory, and a 10-point capacitive touchscreen display, this durable all-metal POS sales terminal is perfect for POS equipment suppliers, software providers, and custom project developers. ROHS, CE, and FCC certified, the ST9800 delivers reliable, high-quality POS equipment for sale to meet evolving retail and business needs.
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
- Elite Appearance: Featuring a full-metal die-cast chassis, this POS equipment delivers a premium look, enhancing the overall appeal of your POS setup.
- Unrivaled Durability: Its robust construction ensures consistent performance and long-term reliability, even under continuous, heavy use in any cash register environment.
- Advanced Thermal Control: Superior thermal conductivity keeps internal temperatures low, preventing overheating and maintaining optimal performance for your POS hardware.
- Extended Operational Life: Ensures stable and dependable operation under demanding workloads, prolonging the service life of your POS system.
- Seamless Commercial Integration: Sleek and minimalist design makes it ideal for diverse commercial settings, enhancing your POS equipment deployment efficiently.
Feature 2: Modular Design
- Highly Customizable: Our POS equipment supports flexible slot-in integration for peripherals like card readers, secondary screens, and VFDs, allowing tailored point of sale solutions for diverse business needs.
- Streamlined for Partners: The modular design simplifies inventory and logistics for POS equipment suppliers, reducing stock complexity and boosting operational efficiency.
- Effortless User Integration: End-users can easily attach or detach peripherals without technical expertise, ensuring a smooth and user-friendly POS system setup.
- Optimized Shipping: Compact and intelligent packaging minimizes shipping volume and costs, benefiting POS equipment distributors globally.
- Eco-Friendly Approach: Designed to reduce packaging waste, supporting sustainable practices and a greener supply chain for POS sales.
Feature 3: Hidden Cable Management
- Discreet Cable Routing: All ports are positioned at the screen base, allowing neat cable management through the unit, ensuring a streamlined POS equipment setup.
- Optimized Counter Aesthetics: Minimizes visible cable clutter for a clean, organized, and professional point of sale environment.
- Elevated Customer Experience: Supports a polished, modern checkout process, leaving a positive impression on staff and customers using your POS system.
- Seamless Design Integration: Blends effortlessly with contemporary retail and hospitality interiors, enhancing the sophistication and efficiency of your POS hardware.
Feature 4: 10-point Capacitive Touchscreen
- Superior Touch Responsiveness: Features 10-point multi-touch for a fluid and precise user experience on your POS system.
- Built for Harsh Environments: Resists water, oil, and dust, ensuring reliable performance in demanding retail and hospitality settings for your POS hardware.
- Crystal-Clear Display: Offers exceptional brightness and sharp visuals, maintaining optimal visibility even in challenging lighting, enhancing cash register operations.
- Maximized Durability: Protective coating extends screen life, ensuring long-term reliability and a durable POS solution.
- Accelerated Workflow: Responsive touch technology speeds up transactions, delivering a smoother and more efficient customer experience with your POS equipment.
More POS Peripherals Options
MatsudaPOS provides global POS distributors with unmatched versatility, enabling the choice of a single-screen POS system or enhancement with optional POS hardware such as card readers, VFD displays, 9.7-inch or 15-inch secondary screens.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 12″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose MATSUDAPOS?
💎 Peak Performance & Dependability
Powered by advanced processors and durable components, this 15-inch POS system ensures seamless operation even during peak business hours, positioning it as premium POS equipment.
📊 Optimized Size, Powerful Functionality
The 15-inch touchscreen display delivers precise touch control and ample viewing area, streamlining transactions while maintaining a compact counter footprint, ideal for any POS setup.
⚡ Fast Deployment & Intuitive Use
Designed for quick installation and effortless operation, this POS hardware allows businesses to start smoothly with minimal setup time.
🔒 Industrial-Grade Durability
Constructed from high-quality, rugged materials, this POS system withstands continuous use in retail and hospitality environments, ensuring reliable long-term performance.
🌍 Flexible Solutions for Global Partners
From OEM/ODM services to optimized logistics and fast shipping, we provide tailored solutions for international POS distributors and software integrators.
🤝 Dedicated Global Support & Assurance
With a 36-month warranty and responsive worldwide support, you can confidently rely on this POS equipment supplier for ongoing operational success.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
