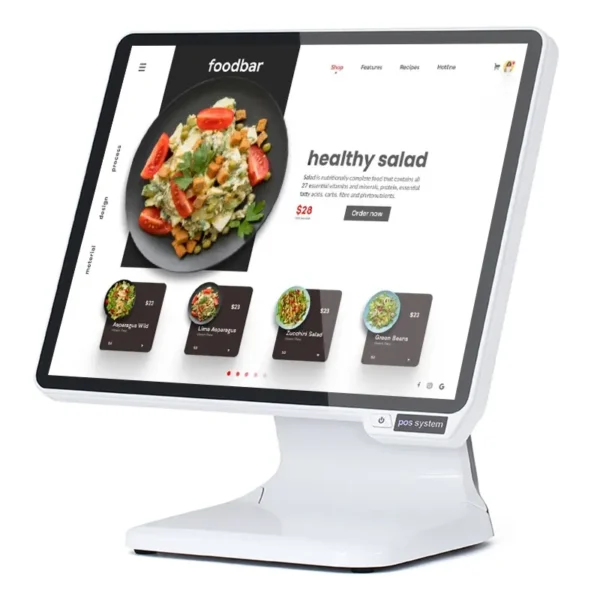

15 Inch White Touch Screen POS System
PRODUCT FEATURES
Model: ST9800 pos system touch screen
Color: White
Housing Material: Full-metal die-cast
Display: 15inch Capacitive Touch Panel 1024*768
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch
The 15 inch touch screen POS system is an ideal solution for modern retail and hospitality businesses. With its sleek white single-screen design and responsive capacitive touch display, this POS terminal delivers smooth transactions and an intuitive user experience. Powered by high-performance Intel or Android processors, it supports fast checkout operations while maintaining long-term reliability. Whether you run a boutique store, café, or restaurant, this system combines efficiency, durability, and style to enhance your point-of-sale environment.
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
- Industrial Metal Chassis: Durable alloy build offers strength and style, perfect for busy retail or restaurant settings.
- 24/7 Reliability: Runs continuously even in high-traffic environments, delivering consistent performance.
- Efficient Cooling System:Smart heat control keeps this POS computer running smoothly during extended operation.
- Powerful Processing:Handles peak-time transactions with ease, keeping your touch screen pos terminal fast and efficient.
- Easy Integration:Works seamlessly with existing point of sale systems and peripherals for quick setup.
Feature 2: Modular Design
- Modular & Expandable:Easily connect payment terminals, scanners, and displays for a customized touch screen POS setup.
- Inventory Management Ready:Simplify stock control with hardware designed for POS systems for retail distributors.
- Plug-and-Play Peripherals:Quickly install MSR, RFID, and customer displays—no tech skills needed for this POS terminal machine.
- Cost-Saving Shipping:Compact packaging reduces international freight and storage expenses for global POS machine suppliers.
- Eco-Conscious Design:Uses recyclable materials and less packaging to support green point of sale systems.
Feature 3: Hidden Cable Management
- Advanced Cable Management System: Strategic bottom-port design allows full wire concealment, ensuring tidy POS terminal machine installations and hassle-free maintenance.
- Clutter-Free Checkout Solutions: Eliminates cable clutter, creating organized transaction zones for POS systems for retail and restaurant environments.
- Enhanced Brand Image Projection: Sleek, wire-free design projects modern professionalism, elevating the customer experience for any POS terminal for retail deployment.
- Universal Design Integration: Minimalist styling blends seamlessly with diverse commercial interiors and POS machine for retail configurations.

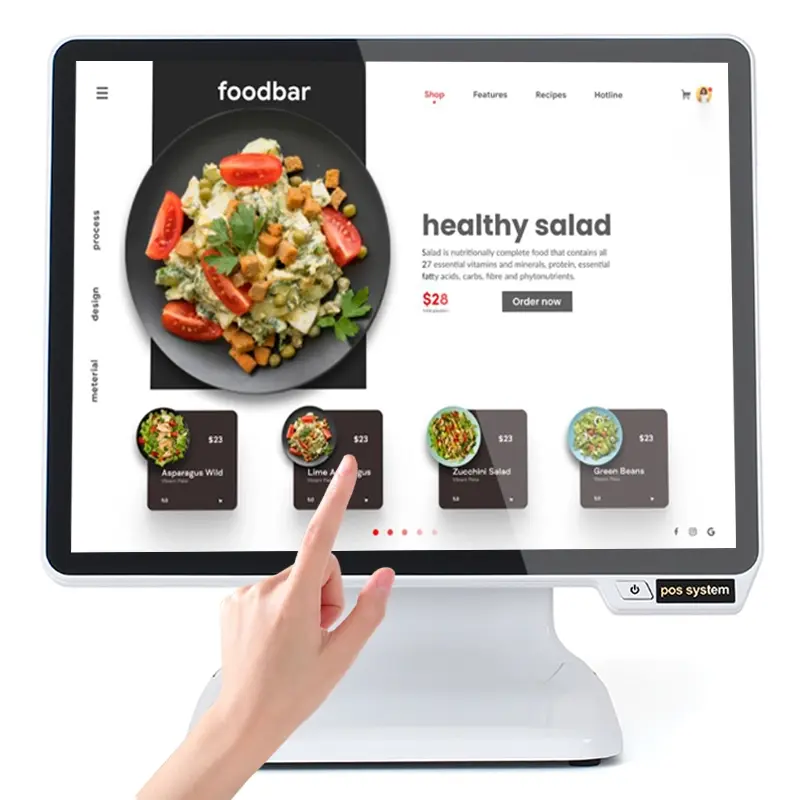

Feature 4: 10-point Capacitive Touchscreen
- 10-Point Professional Touch: Advanced multi-touch technology provides precise and responsive control, optimizing performance for POS terminal machine operations.
- Commercial-Grade Protection: IP54-certified resistance to liquids, oils, and dust ensures dependable operation in busy POS systems for retail and restaurant environments.
- High-Luminance Display: 500-nit brightness guarantees clear visibility under varied lighting, enabling efficient transactions on any POS terminal for retail setup.
- Military-Grade Screen Strength: 7H hardened glass with oleophobic coating delivers superior scratch resistance and long-lasting durability for POS machine for retail use.
- Intuitive Operation Interface: User-friendly touch response accelerates checkout workflows while reducing staff training requirements.
More POS Peripherals Options
MatsudaPOS delivers scalable POS terminal machine solutions for global partners. Our modular POS systems for retail offer flexible configurations, from compact single-screen setups to expanded solutions featuring payment readers, VFD modules, and dual displays (9.7″ or 15″). Create customized POS terminal for retail solutions for stores, restaurants, and specialized commercial environments. Ideal for POS machine for retail distributors, system integrators, and software partners seeking reliable, adaptable point of sale equipment that meets diverse business requirements worldwide.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 12″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose ST9800?
Dual-Screen Processing Power
Advanced Intel/Android processors deliver seamless performance for POS terminal machine operations and POS systems for retail during peak business hours.Space-Efficient Design
Dual 15-inch touch screen pos displays maximize workspace utility, ideal for POS terminal for retail and POS machine for retail environments.Quick Setup Ready
Pre-configured for fast deployment, this touch screen pos terminal reduces installation time and accelerates ROI.Commercial Durability
Rugged metal construction ensures 24/7 reliability, making it a robust POS computer for demanding retail and restaurant use.Global Customization
OEM/ODM services with flexible configurations meet diverse market needs for POS touch screen distributors worldwide.Comprehensive Support
3-year warranty and global technical support ensure uninterrupted operations for your point of sale systems.FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
