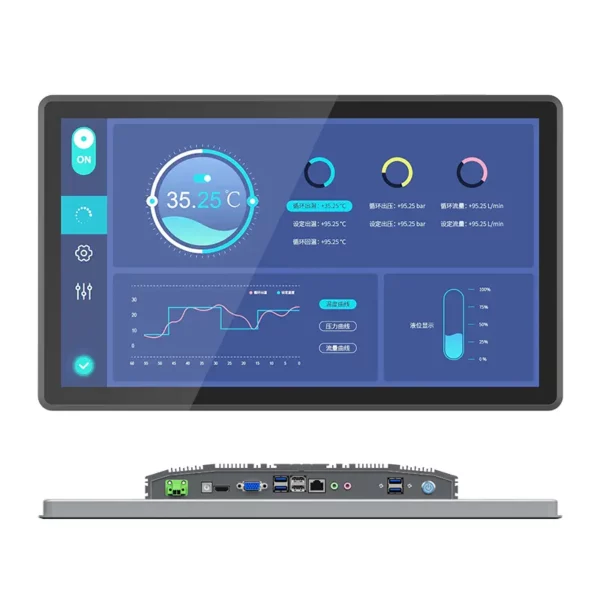

IP203-215 21.5-inch Fully Enclosed (Embedded) Industrial Control All-In-One Computer
Key Specifications:
Multi-OS Platform:
Windows: Intel Core i5/i3, Celeron J1900
High-Performance Display:
21.5″ HD (1920*1080) 16:9, 10-point capacitive touchscreen
Metal housing with optional VESA mount
Robust Configuration:
Memory:4G DDR 3L 1333 MHz (upgradable to 8G/16G)
Storage: 64G SSD (upgradable to 128G/256G/512G, 2.5-inch hard drive can be added)
Graphics Card: Intel HD Graphics core graphics card
Appearance: OEM color / Logo
Bracket: Vertical bracket, hanging bracket, adjustable bracket
Certifications: CE, FCC, ROHS
Feature
Interface
1*Ethernet port / 2*COM / USB*4 / VGA*1 / LINE OUT*1 / MIC*1
(The network port can be expanded to 2 channels, the COM port can be expanded to 6 channels, and the USB port can be expanded to 6 channels)
The serial port 232 can be changed to 485, add COM, USB, network port, wide voltage module, aviation head, LPT, GPIO and other interfaces
Why Choose a 21.5" Industrial All-in-One PC?
✔ Ultra HD Clarity – Full HD (1920×1080) or higher resolution for detailed schematics and video feeds.
✔ Expanded Multitasking – Larger screen allows multiple applications (PLC, CCTV, SCADA) to run side by side.
✔ Rugged & Long-Lasting – Fanless, IP65/66 protection, wide-temperature (-30°C to 70°C), and shock/vibration resistance.
✔ Rich Connectivity – Multiple RS-232/485, USB, Ethernet, HDMI, and expansion slots for industrial peripherals.
✔ 24/7 Reliability – Industrial-grade components with 10+ years of lifecycle support.
Conclusion
The 21.5-inch industrial all-in-one PC is the ultimate choice for control rooms, smart factories, logistics hubs, and critical infrastructure where high-resolution visualization, rugged durability, and centralized control are mandatory. It bridges the gap between small HMIs and large control panels, making it ideal for data-intensive industrial automation.
Would you like a recommendation based on your specific industry needs?
Application Scenarios:
1. Industrial Control Rooms & SCADA Systems
2. Smart Manufacturing & Industry 4.0
3. Logistics & Warehouse Automation
4. Transportation & Traffic Management
5. Energy & Utilities
6. Military & Defense Command Centers
7. Medical & Laboratory Applications
8. Food & Beverage Production
9. Public Safety & Emergency Response
10. Retail & Self-Service Solutions
Contact US
Make Cashiering Easier
- Tel: +86 15019090919
- Email:info@matsuda-pos.com
- Room 203, Building 2, No. 25, Daxin Road, Gedi, Nancheng Street, Dongguan, Guangdong, China
| Machine Parameters | ||||
| Model | IP203-215 | |||
| Size | 21.5 inch | |||
| Overall Dimensions | 524.6*317.2*51mm | |||
| Opening Size | 518.6*311.2mm R8.0 | |||
| Packing Size | 564*358*86mm | |||
| Appearance | Fully enclosed aluminum housing | |||
| Windows Configuration Parameters | ||||
| CPU | Intel® Celeron® Processor J1900 (2M cache, up to 2.42 GHz) | |||
| Intel® Core™ 3rd i3-3217 UE i5-3317U | ||||
| Intel® Core™ 4th i3-4010U i5-4200U i7-4500U | ||||
| Intel® Core™ 6th i5-6200U 8th i7-8550U | ||||
| Intel® Core™ 10th i5-10210U i7-1010U | ||||
| Memory | 4G DDR 3L 1333 MHz (upgradable to 8G/16G) | |||
| Storage | 64G SSD (upgradable to 128G/256G/512G, 2.5-inch hard drive can be added) | |||
| Graphics Card | Intel HD Graphics core graphics card | |||
| Network | Realtek RTL 8111F Gigabit Ethernet | |||
| Operating System | Windows 7/8.1/10, Linux | |||
| WIFI (Optional) | WIFI and Bluetooth optional | |||
| 4G(Optional) | 4G function optional | |||
| Interface | 1*Ethernet port / 2*COM / USB*4 / VGA*1 / LINE OUT*1 / MIC*1 | |||
| (The network port can be expanded to 2 channels, the COM port can be expanded to 6 channels, and the USB port can be expanded to 6 channels) | ||||
| Speaker | Built-in speaker 2W | |||
| LCD Screen Parameters | ||||
| Resolution | 1920*1080 | |||
| Screen Ratio | 16:9 | |||
| Brightness | 350 cd/m2 | |||
| Viewing Angle | Full View | |||
| Support Color | 16.7M, 72% NTSC | |||
| Contrast | 1000:1 (Typ) (Transmission) | |||
| Touch Screen Parameter | ||||
| Touch Type | G+G capacitive 10-point touch screen | |||
| Input Method | Operate by touching with a conductor such as a finger or stylus | |||
| Service Life | >50 million | |||
| Maximum Resolution | 4096X4096 | |||
| Linearity Error | <2.5mm | |||
| Light Transmittance | ≥85% | |||
| Surface Hardness | ≥6 hours | |||
| Environmental Parameters | ||||
| Installation | Embedded, wall-mounted, desktop, VESA standard support arm | |||
| Power Performance | 12V5A | |||
| Operating Temperature | 0~50°℃ | |||
| Storage Temperature | -10~60℃ | |||
| Working Current | ≤5A | |||
| Upgradable Configuration | ||||
| Memory | Up to 8G/16G | |||
| Hardisk | Upgradeable SSD 128G/256G/512G, can add 2.5-inch mechanical hard drive | |||
| Display | Can upgrade | |||
| Appearance | OEM color / Logo | |||
| Bracket | Vertical bracket, hanging bracket, adjustable bracket | |||
| I/O Port | The serial port 232 can be changed to 485, add COM, USB, network port, wide voltage module, aviation head, LPT, GPIO and other interfaces | |||
*product specifications and model configurations are subject to change and may vary by global region.
