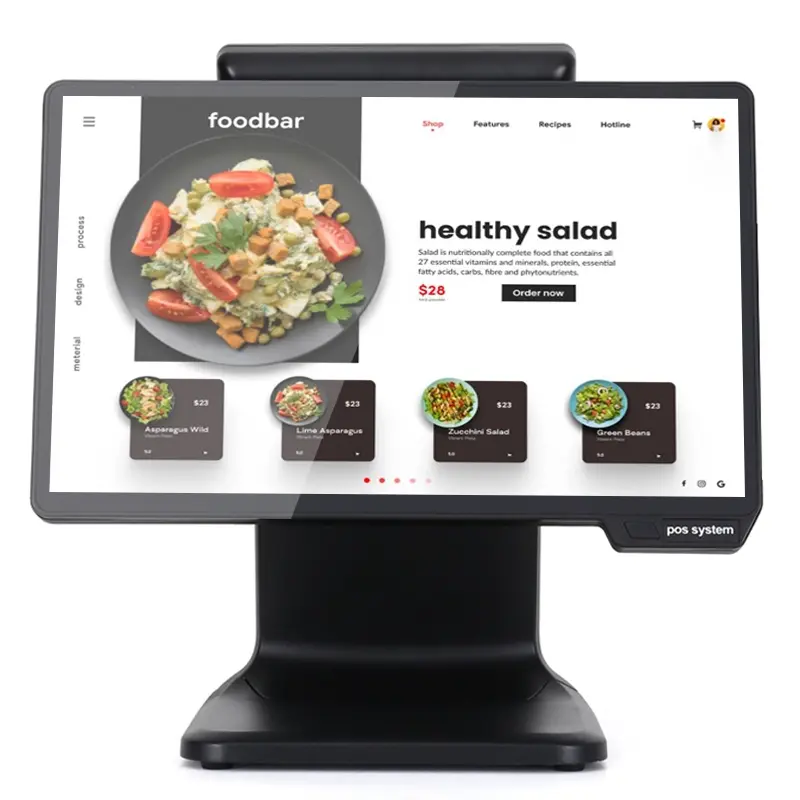

15.6inch Black Touch Screen POS & VFD
PRODUCT FEATURES
Model: ST9800 pos
Housing Material: Full-metal die-cast
Display: 15.6inch Capacitive Touch Panel 1366*768/1920*1080
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
Premium Appearance: The 15.6-inch POS features a full-metal die-cast casing, delivering a high-end look that elevates your pos environment.
Strong & Durable: Its rugged 15.6 POS structure ensures long-term reliability even under heavy commercial use.
Superior Heat Dissipation: With excellent thermal conductivity, the 15.6 POS system stays cool and prevents overheating during peak hours.
Extended Lifespan: The durable design guarantees stable operation under demanding workloads.
Professional Design: A seamless, minimalist finish makes this 15.6-inch POS ideal for professional retail and hospitality settings, including a pos terminal restaurant setup.

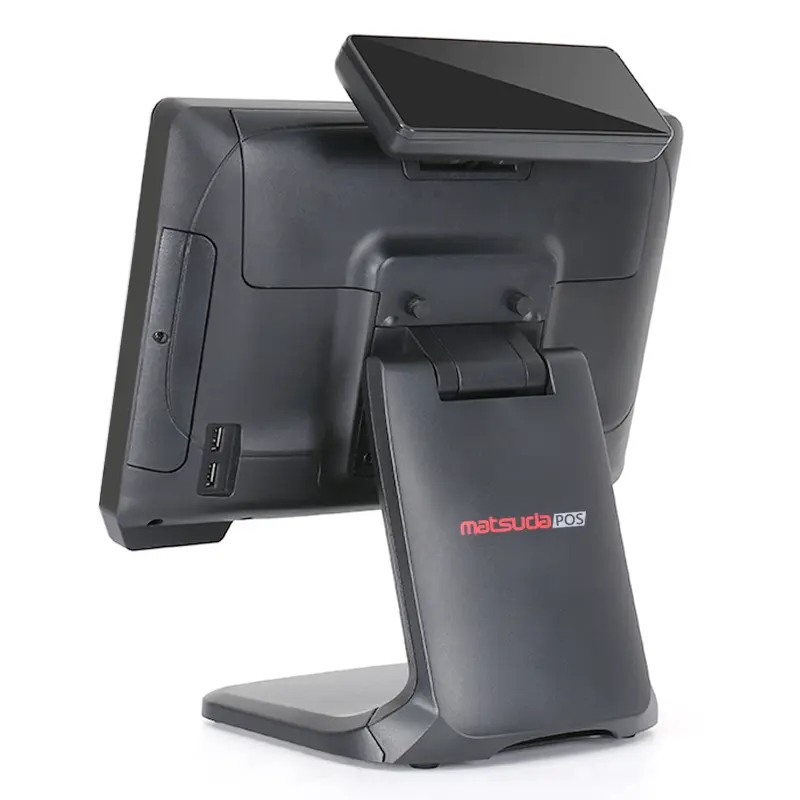

Feature 2: Modular Design
Flexible Configuration: The 15.6-inch POS offers a modular design with slot-in expansion for card readers, secondary displays, and VFD units—scalable as a pos terminal pos system.
Distributor-Friendly: Unlike fixed combinations, this 15.6 platform reduces inventory pressure, simplifying stock management for distributors.
Easy Installation: End users can add peripherals to the 15.6 POS terminal without technical expertise—quick to bring a pos terminal restaurant online.
Lower Shipping Costs: Compact packaging minimizes shipping volume and costs.
Eco-Conscious: Reduced packaging materials align with sustainable logistics practices.
Feature 3: Hidden Cable Management
Concealed Wiring: Bottom ports route cables through the base to keep the pos setup tidy.
Clean & Neat: This 15.6 POS solution prevents clutter, ensuring an organized, professional checkout counter.
Enhanced User Experience: Creates a professional, elegant environment that improves the customer experience.
Premium Image: Designed to match modern retail and hospitality aesthetics, enhancing the overall impression of your point-of-sale area.

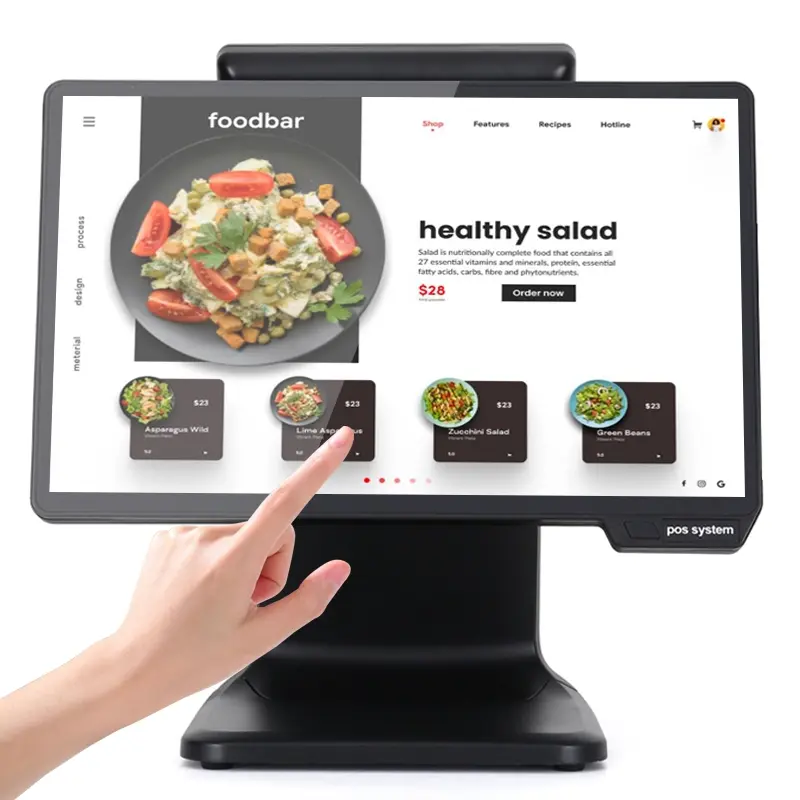

Feature 4: 10-point Capacitive Touchscreen
High Sensitivity: A responsive 10-point capacitive touchscreen enables smooth, precise transactions.
Durable & Resilient: Resistant to water, oil, and dust, ensuring reliable operation in demanding environments.
High Brightness: The 15.6-inch display maintains clarity even under strong lighting.
Reliable Performance: A protective coating extends the screen’s durability and lifespan.
Efficient Operation: Fast, accurate touch improves cashier efficiency and the customer experience—ideal for teams seeking the Best POS system for retail businesses.
More POS Peripherals Options
Matsuda POS provides a comprehensive suite of versatile POS solutions tailored for global partners. As a modular pos platform, we support flexible configurations—from compact single-screen units to advanced builds with payment readers, VFD modules, and dual displays (9.7″ or 15″). Each setup is engineered for retail, hospitality, and commercial deployments as a robust pos terminal pos system, with options tailored for a pos terminal restaurant setup. Trusted by partners seeking the Best POS system for retail businesses, our reliable, future-ready hardware enables fast rollout, easy maintenance, and consistent uptime across multi-site operations.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 12″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose ST9800?
High-Speed Processing
Powered by robust processors and enterprise-grade components, the 15.6-inch pos delivers stable, high-speed checkout at peak times—making it a strong contender for the Best POS system for retail businesses.
Perfect Balance of Size & Function
The 15.6-inch display provides precise touch input in a compact footprint—ideal for front counters in a pos terminal restaurant setup and space-constrained retail.
Plug-and-Play Convenience
Tool-free, plug-and-play connectivity enables quick installation and peripheral setup, turning the unit into a ready-to-deploy pos terminal pos system for multi-site rollouts.
Durable Hardware Build
Rugged materials and reinforced construction keep the 15.6-inch pos platform running reliably through long shifts in retail and hospitality environments.
Distributor-Friendly Supply Chain
Modular SKUs, OEM/ODM customization, and fast international shipping streamline deployments for global distributors and partners.
Comprehensive After-Sales Support
A 36-month warranty and responsive global support keep point-of-sale operations smooth and worry-free across retail and restaurant locations.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
