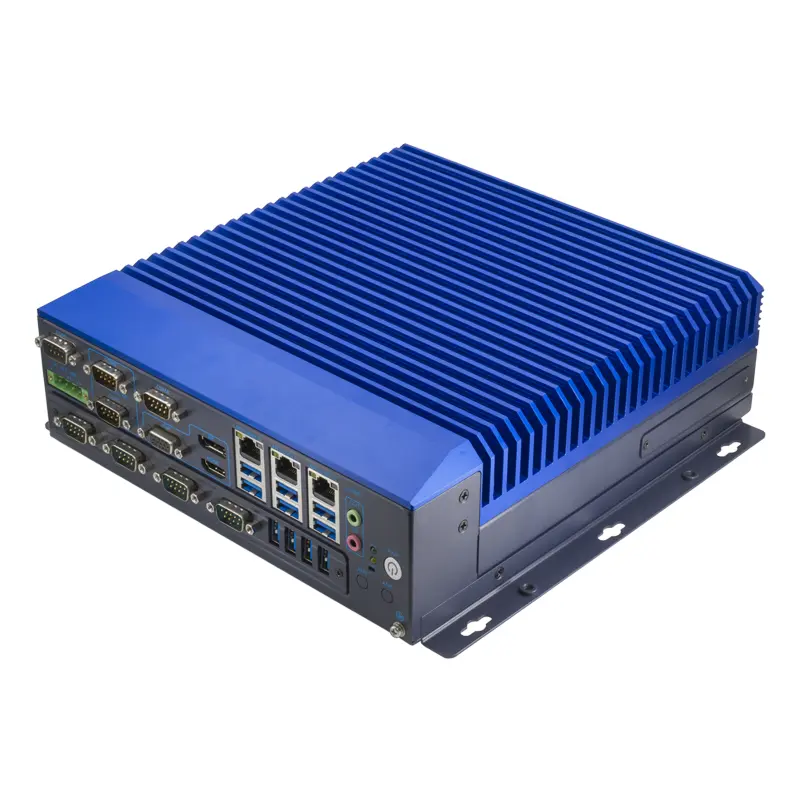

Industrial Embedded PC with 12th/13th/14th Gen Intel® CPU, Triple Display, Wide Voltage Input, and 4× COM Ports
-
High-Performance Industrial Computing
Built on the Intel® Q670 chipset, this embedded system supports 12th to 14th Gen Intel® desktop processors (i3/i5/i7), delivering powerful and stable performance for industrial automation and edge computing. -
Flexible I/O and Triple Display

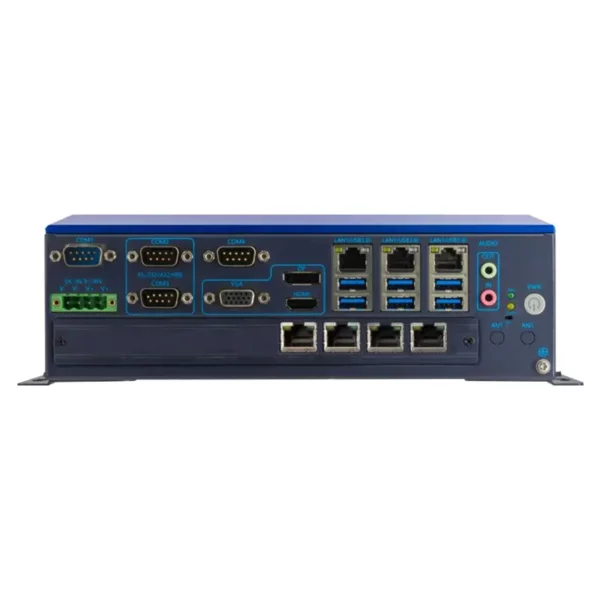

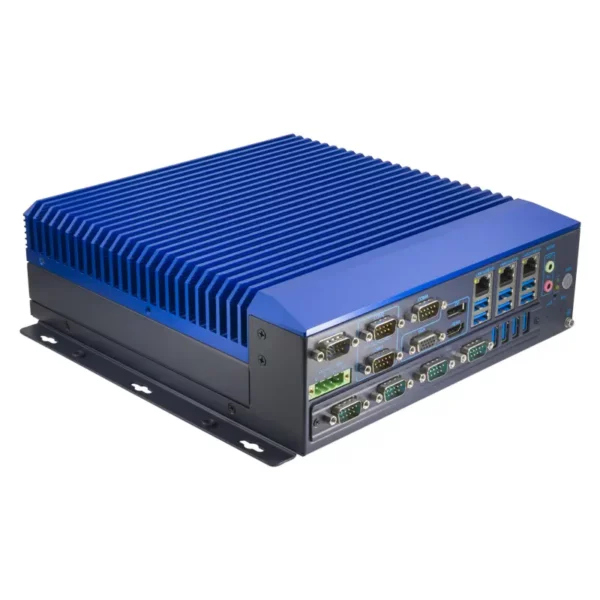

Offers 4× COM ports (with RS232/422/485 options), 8× USB ports, and three display outputs: HDMI, DisplayPort, and VGA. Perfect for multi-screen industrial control applications. -
Reliable Power and Rugged Design

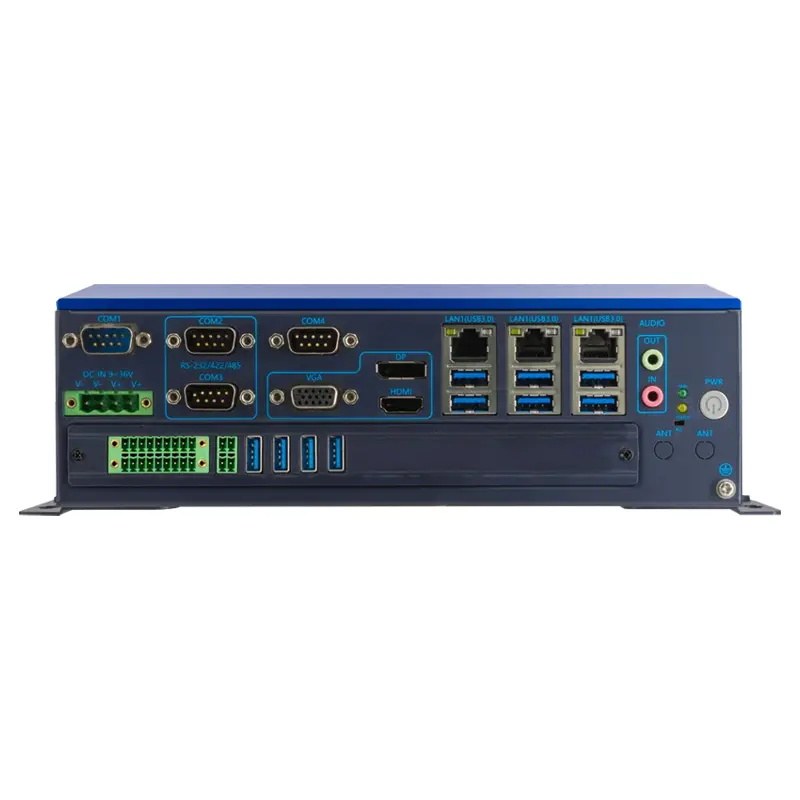

Features a 9–36V DC wide-voltage Phoenix terminal with built-in protections. The fanless aluminum alloy and SGCC steel enclosure ensures silent and durable operation in harsh environments from -20°C to 60°C.
Industrial Fanless Embedded Computer with Intel® Tiger Lake i7/i5/i3 CPU, Dual 2.5G LAN, Triple Display, 9–36V Wide Voltage Input
Better POS, Better Business
Feature
This compact industrial embedded PC is designed with an abundance of I/O interfaces to ensure seamless connectivity in diverse industrial applications. It features multiple USB 3.0 and 2.0 ports, four COM ports (with RS232/422/485 options), triple display outputs (HDMI, DP, VGA), and dual Intel® LAN ports for high-speed communication. Despite its rich I/O configuration, the unit maintains a compact footprint of just 248×235×77 mm, making it ideal for space-constrained environments. The fanless aluminum enclosure not only ensures reliable operation in harsh conditions but also enhances passive heat dissipation for long-term stability.
Built with a rugged aluminum alloy and SGCC steel enclosure, this fanless embedded PC is engineered for efficient passive heat dissipation. The optimized thermal design ensures silent operation without the risk of dust accumulation or fan failure. Its wide operating temperature range (-20°C to 60°C) and vibration-resistant construction make it ideal for demanding industrial environments. This system delivers long-term stability and reliable performance for continuous 24/7 operation, even under high-load conditions.
Applications
This industrial mini PC is ideal for a wide range of applications including factory automation, intelligent manufacturing, industrial control systems, digital signage, retail kiosks, and edge computing. With its powerful processing capability, versatile I/O ports, and support for multi-screen display, it enables stable and real-time data processing in harsh industrial environments. Its compact size, wide voltage input, and fanless design make it perfectly suited for embedded deployments in space-constrained or vibration-prone settings.
Overview
| Product Specifications | |
|---|---|
| CPU | Supports Intel® 12th/13th/14th Gen i3/i5/i7 Desktop Processors (up to 65W) |
| Chipset | Industrial-grade Intel® Q670 |
| Memory | 2× DDR4 SO-DIMM, up to 64GB, 3200MHz |
| Graphics | VGA: 1920×1200@60Hz HDMI: 4096×2160@60Hz DP: 4096×2304@60Hz |
| Storage | 1× M.2 M-Key 2280 (NVMe/SATA supported) 1× 2.5" HDD/SSD Bay (SATA 3.0) 1× SATA3.0 Port |
| Expansion | 1× M.2 B-Key (5G/4G support) 1× M.2 E-Key (Wi-Fi/BT support) 1× PCIe x16 Slot (internal signal) |
| LAN | Intel® i219-LM + 2× Intel® i210-AT |
| COM Ports | 4× COM (COM2/3 BIOS selectable RS232/422/485, optional pin #9 with 5V/12V) |
| USB Ports | 8× USB3.0, 4× USB2.0 (internal) |
| Audio | 1× Line-out |
| Display Outputs | 1× HDMI, 1× DisplayPort, 1× VGA |
| Power Input | 4-pin Phoenix Terminal, DC 9–36V (with OVP, OCP, SCP protection) |
| Power Functions | Auto Power On, Watchdog Timer, Wake-on-LAN, Diskless Boot, Scheduled Boot |
| Indicators & Switches | Power Switch, Reset Switch, Power LED, HDD LED |
| Construction | Aluminum extrusion alloy + SGCC steel, sandblasted & painted |
| Dimensions | Without brackets: 248×235×77 mm With brackets: 265×248×80 mm |
| Weight | Approx. 2.5 kg |
| Operating Environment | Temperature: -20°C to 60°C Humidity: 5%–95%, non-condensing |
| Storage Environment | Temperature: -20°C to 85°C Humidity: 5%–95%, non-condensing |
| OS Compatibility | Windows 7, Windows 10, Linux |
