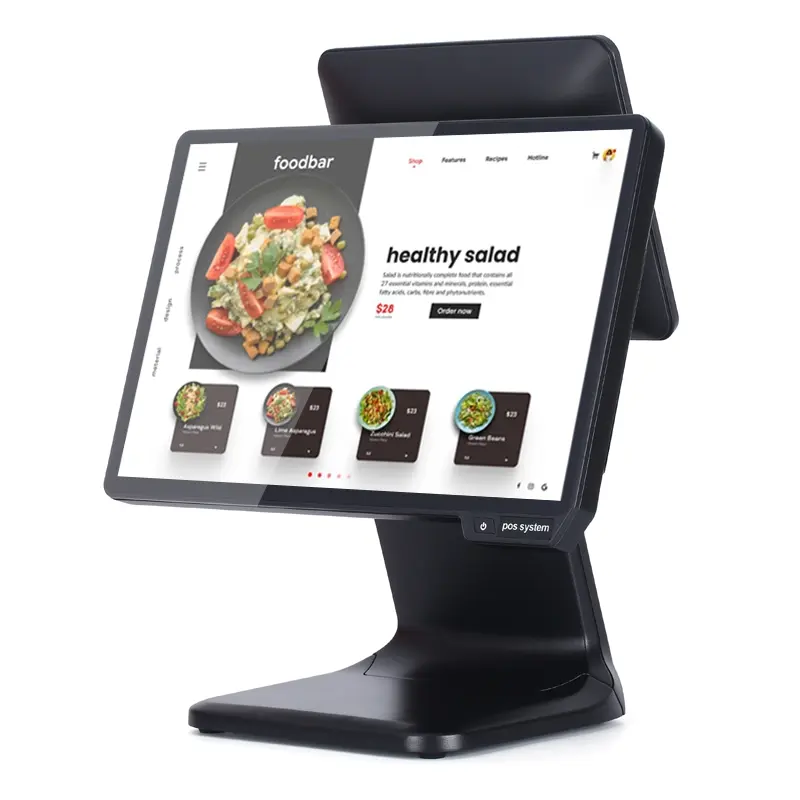

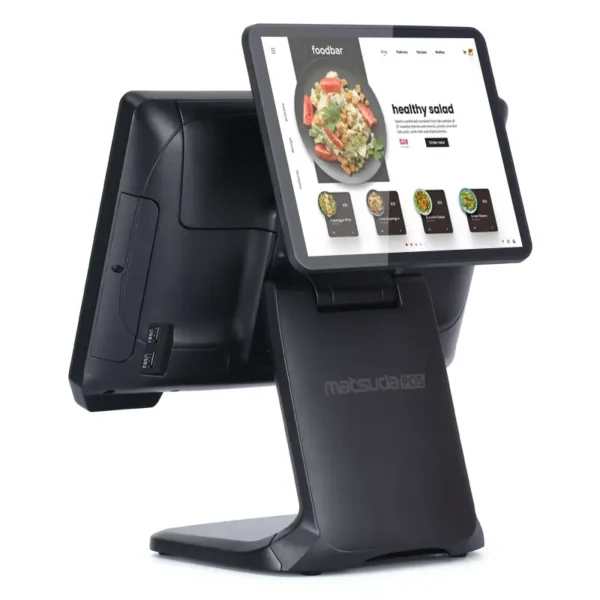

15.6inch Black Dual Screen Point of Sale POS System
PRODUCT FEATURES
Model: ST9800 point of sale pos system
Housing Material: Full-metal die-cast
Display: 15.6inch Capacitive Touch Panel 1366*768/1920*1080
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch
Upgrade your business with the ST9800 point of sale POS system, a top-tier All-in-One POS System built for efficiency. This robust Touchscreen POS system features a 15.6-inch display and sleek design, housed in a durable chassis with Windows or Android OS, up to 16GB RAM, and ample storage.
CE/FCC/ROHS certified, it combines reliability with advanced functionality. The integrated payment terminal ensures secure transactions, while transparent pricing offers outstanding value. Ideal for retail or hospitality, the ST9800 All-in-One POS system maximizes productivity and supports sustainable growth.
Product Overview
Technical Specifications
ST9800-15.6 Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 4th~8th, 12th gen) Intel Core i5 Dual Core (the 4th~8th , 12th gen) | RK3568 Quad-core ARM CortexA55 up to 1.8GHz/2.0GHZ RK3566 Quad-core cortex A55 up to 2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 1000M Self-adaption | wifi&BT module, RJ45 Ethernet port |
| I/O Port | USB*6、COM*2、HDMI/VGA*1、DC*1、LAN*1、AU*1 | DC*1、RJ11*1、COM*2、USB*6、SIM&SD*1、LAN*1、AU*1 |
| Display Screen | 15.6inch True Flat Screen (16:9) | |
| Resolution | 1366*768/1920*1080 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Linux, Windows 10/11,etc. | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm (Single Screen) 7.5KG 47cm*27cm*45cm (Dual Screen) 9.5KG |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
Premium Appearance: The 15.6-inch unit uses a full-metal die-cast casing for a high-end look—an All-in-one POS system you’ll be proud to display.
Strong & Durable: Rugged 15.6-inch chassis ensures long-term reliability under heavy commercial use.
Superior Heat Dissipation: Excellent thermal conductivity keeps the 15.6-inch system cool and prevents overheating during peak hours.
Extended Lifespan: Durable design delivers stable operation under demanding workloads.
Professional Design: Seamless, minimalist finish suits retail and hospitality front-of-house as a modern payment terminal.

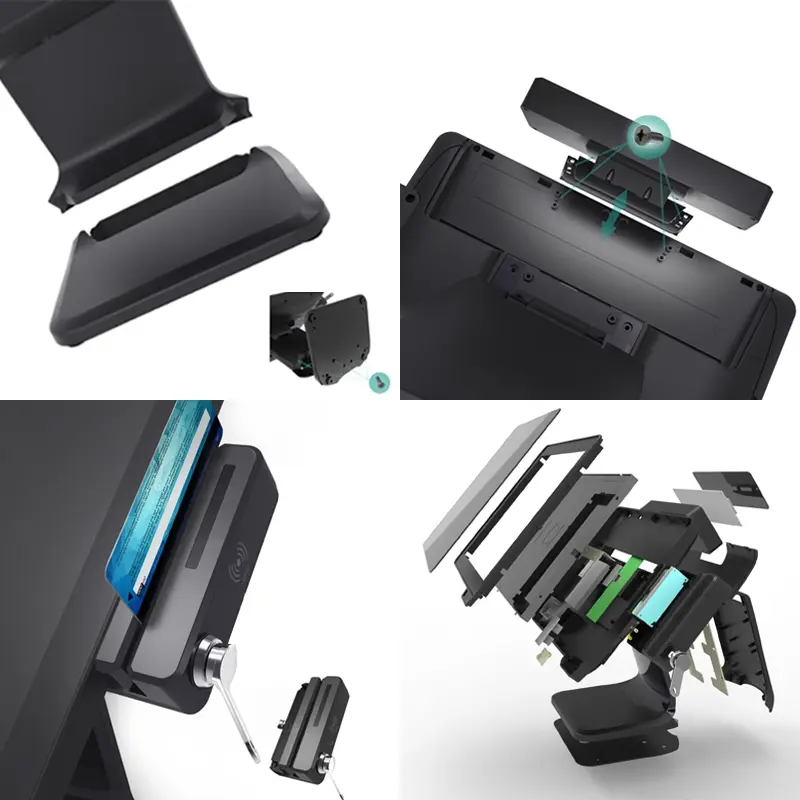

Feature 2: Modular Design
Flexible Configuration: Modular design supports slot-in expansion for card readers, secondary displays, and VFDs on the 15.6-inch platform.
Distributor-Friendly: Unlike fixed bundles, the 15.6-inch lineup reduces inventory pressure and simplifies stock management.
Easy Installation: Peripherals can be added by end users—no technical expertise required.
Lower Shipping Costs: Compact packaging minimizes volume and freight expenses.
Eco-Conscious: Recyclable, reduced packaging supports sustainable logistics.

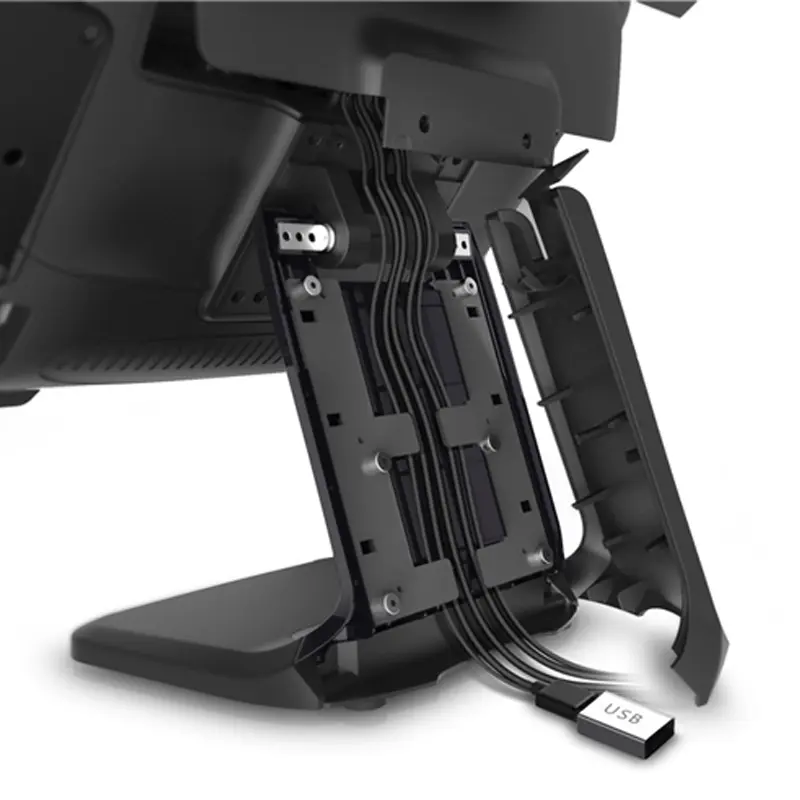

Feature 3: Hidden Cable Management
Concealed Wiring: Bottom ports route cables through the base for a tidy setup.
Clean & Neat: Keeps your checkout organized—ideal for a point of sale pos system.
Enhanced User Experience: Creates a professional, elegant environment that elevates customer perception.
Premium Image: Matches modern retail/hospitality aesthetics to enhance your point-of-sale area.

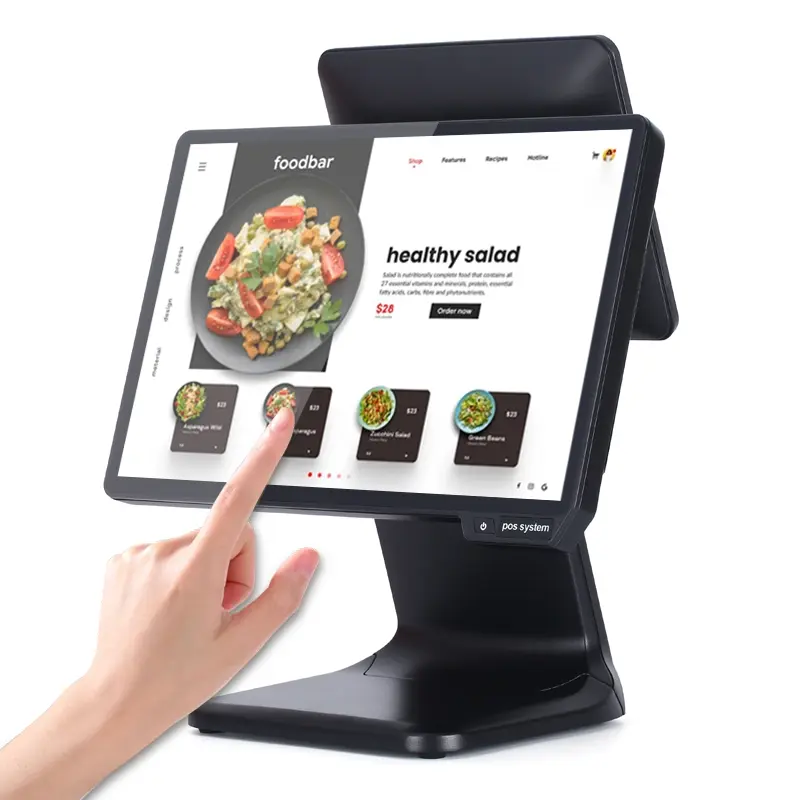

Feature 4: 10-point Capacitive Touchscreen
High Sensitivity: Responsive 10-point capacitive touch powers a smooth Touchscreen POS system experience.
Durable & Resilient: Resistant to water, oil, and dust for reliable use in tough environments.
High Brightness: 15.6-inch display remains clear under strong lighting.
Reliable Performance: Protective coating extends screen durability and lifespan.
Efficient Operation: Fast, accurate touch improves cashier efficiency and throughput.
More POS Peripherals Options
MatsudaPOS delivers modular, all-in-one POS hardware for global partners. Configure anything from a compact single-screen Touchscreen POS system to an advanced All-in-one POS system with payment readers, VFD modules, and dual displays (9.7″ or 15″). Purpose-built for retail, hospitality, and commercial environments, our reliable, future-ready platforms scale smoothly across multi-site deployments.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 12″, 15″)
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
In 2023, MatsudaPOS partnered with SIGMA Technology to deploy our POS systems across multiple retail chain stores in Canada. Thanks to the excellent performance and modern design of our cash register hardware, the solution was highly appreciated by store managers, creating a true win-win cooperation.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
MatsudaPOS supports tailored solutions for advanced industries. For example, we cooperated with SRM Integration (Malaysia) Sdn Bhd, one of the world’s leading providers of semiconductor and high-speed testing processors. We delivered customized touch display equipment that met their unique integration requirements, ensuring seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing, we also provide OEM colorful packaging design services. Customers may either rely on our professional design team or supply their own artwork for production.
Taiwan – POSIFLEX Product Customization
POSIFLEX, a globally renowned POS hardware supplier, required a customized solution. In response, MatsudaPOS developed the ST9200F modular POS system, designed to fit their specific demands. Since its launch, the model has gained strong market recognition. We welcome all types of OEM/ODM customization requests from global clients.
Why Choose ST9800?
High-Speed Processing
Powered by robust processors and enterprise-grade components, the 15.6-inch All-in-one POS system delivers stable, high-speed checkout even during peak business hours.
Perfect Balance of Size & Function
The 15.6-inch display provides precise touch input in a compact footprint—ideal for busy counters and front-of-house as a modern Touchscreen POS system.
Plug-and-Play Convenience
Tool-free, plug-and-play connectivity enables quick installation and peripheral setup, turning the 15.6-inch unit into a ready-to-deploy payment terminal.
Durable Hardware Build
Rugged materials and reinforced construction keep the 15.6-inch point of sale pos system running reliably through long shifts in retail and hospitality environments.
Distributor-Friendly Supply Chain
Modular SKUs, OEM/ODM customization, and fast international shipping streamline rollouts for global distributors and multi-site deployments.
Comprehensive After-Sales Support
A 36-month warranty and responsive global support keep point-of-sale operations smooth and worry-free for partners worldwide.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
