POS Machine Manufacturer 15inch Black Metal POS with MSR
PRODUCT FEATURES
Model: ST9800 POS machine
Housing Material: Full-metal die-cast
Display: 15inch Capacitive Touch Panel 1024*768
Supported OS: Windows/ Linux/ Android
Supported Customer Display: 9.7inch, 12inch, 15inch

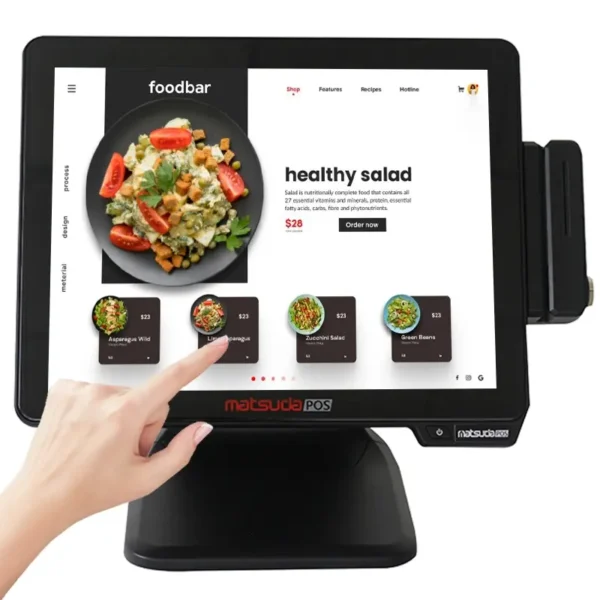

This 15 inch POS machine combines durability and performance with a sleek black metal housing. Equipped with an integrated MSR (magnetic stripe reader), it delivers smooth transactions and reliable operation for retail and hospitality businesses. The responsive 15 touch POS terminal ensures fast input, while its universal compatibility with POS software makes it highly flexible. Designed as a black POS machine for professional environments, it provides stability, style, and scalability—perfect for growing businesses seeking an efficient 15inch POS solution.
Product Overview
Technical Specifications
ST9800 Product Specification Sheet
| Specification | ||
|---|---|---|
| Windows | Android | |
| CPU |
Intel Processor N97 (6M Cache, up to 3.60 GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, 1 RJ45 Ethernet port |
| I/O Port | LINE-OUT*1, Type C*2, DC-IN*1, USB3.0*2, RJ11*1, LAN*1, COM*1 | DC*1, RJ11*1, COM*2, USB*6, SIM&SD*1, LAN*1, AU*2 |
| Display Screen | 15inch True Flat Screen (5:4) | |
| Resolution | 1024*768 | |
| Touch Screen | 10 Points Capacitive Touch | |
| OS Support | Windows10/11, Linux | Android11, Android13. |
| Housing Material | Metal | |
| Power Supply | 12V, 5A | |
| Warranty | 3 Years | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size | 43cm*20cm*43cm 7.5KG (Single Screen) 47cm*27cm*45cm 9.5KG (Dual Screen) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Option |
Customer Display: 9.7″/11.6″/12″/15″/15.6″ Built-in: WIFI/ Bluetooth/Loudspeaker Reader: MSR/ RFID/ NFC/ IBUTTON |
|
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
47cm*27cm*45cm 9.5KG (Dual Screen)
Built-in: WIFI/ Bluetooth/Loudspeaker
Reader: MSR/ RFID/ NFC/ IBUTTON
Key Features
Feature 1: All-metal Die-cast Casing
Elegant Aesthetics: This 15 inch POS machine features a full-metal die-cast casing, delivering a sophisticated design for modern businesses.
Robust Durability: Built as a black POS machine, its solid metal housing ensures long-lasting reliability even with continuous heavy usage.
Optimized Thermal Management: The 15 touch POS terminal provides excellent heat dissipation, preventing overheating and maintaining stable performance.
Prolonged Operational Life: Designed as a 15inch POS solution, it guarantees consistent operation and extended lifespan under demanding workloads.
Sleek Professionalism: With its minimalist finish, this POS machine fits perfectly into retail, hospitality, and other commercial settings.
Feature 2: Modular Design
Versatile Customization: This 15 inch POS machine supports card readers, secondary displays, and VFDs, allowing flexible peripheral expansion.
Simplified Inventory for Partners: As a black POS machine, it offers modular design instead of fixed configurations, making stock management easier for distributors.
User-Friendly Assembly: The 15 touch POS terminal features tool-free installation, enabling end-users to set up quickly without technical skills.
Cost-Effective Shipping: Compact packaging reduces volume and weight, lowering logistics costs for every 15inch POS delivery.
Environmentally Responsible: This pos machine is packaged with minimal materials, reducing waste and supporting sustainable business practices.
Feature 3: Hidden Cable Management
Integrated Cable Management: The 15 inch POS machine places all ports at the base, with cables routed neatly through the stand.
Clutter-Free Workspace: This black POS machine eliminates cable mess, keeping counters clean, organized, and highly professional.
Improved Customer Impression: A 15 touch POS terminal with a tidy setup creates a sleek checkout experience that boosts customer satisfaction.
Modern Aesthetic Appeal: Designed as a 15inch POS solution, it blends seamlessly into retail and hospitality spaces, enhancing brand image.
Feature 4: 10-point Capacitive Touchscreen
Precision Touch Control: This 15 touch POS terminal supports 10-point multi-touch, offering an intuitive and accurate user experience.
Ruggedized for Commercial Use: Built as a black POS machine, it withstands splashes, spills, and dust for reliable performance in busy settings.
Optimal Visual Performance: The 15 inch POS machine delivers bright and vibrant visuals, ensuring clarity under any lighting condition.
Extended Service Life: Designed as a 15inch POS solution, the screen’s protective coating enhances durability and long-term reliability.
Enhanced Operational Efficiency: Responsive touch technology accelerates transactions, making this pos machine ideal for improving service speed.
More POS Peripherals Options
When serving end customers, every business has unique needs. As a distributor, you can source MatsudaPOS hardware flexibly—select a single-screen POS machine or enhance it with optional peripherals such as a card reader, VFD display, a 9.7-inch secondary monitor, or a 15inch POS screen. This versatility allows you to configure the perfect 15 touch POS terminal for each client, ensuring tailored solutions and higher customer satisfaction.
Optional Peripheral Devices: MSR/VFD/Customer Display (9.7″, 15″)
Pleasant Success Stories
Canada – Retail Chain Deployment
In 2023, MatsudaPOS collaborated with SIGMA Technology to implement our 15inch POS machines across several Canadian retail chains. The combination of reliable performance and sleek black POS machine design received high praise from store managers, creating a mutually beneficial partnership.
Malaysia – Tailored Touch Solutions for Semiconductor Industryor Semiconductor Industry
MatsudaPOS provides customized hardware for specialized sectors. We worked with SRM Integration (Malaysia) Sdn Bhd to deliver a 15 touch POS terminal solution perfectly adapted to their semiconductor testing workflow, ensuring smooth integration and efficient operations.
Iraq – OEM Packaging and Branding
Our long-term client, Morabaa Sales Point, has partnered with MatsudaPOS for over five years. Beyond supplying high-quality pos machines, we offered OEM options including custom logos and colorful packaging, either designed by our expert team or provided by the client.
Taiwan – Modular POS Customization for Global Supplier
POSIFLEX, a leading global POS provider, required a bespoke solution. MatsudaPOS developed the ST9200F modular 15inch POS system to meet their exact specifications. Since its release, this black POS machine has achieved strong market recognition, and we continue to welcome OEM/ODM customization requests worldwide.
Why Choose MATSUDAPOS?
💎 Unmatched Performance & Reliability
Equipped with advanced processors and durable components, this 15inch POS machine ensures smooth, uninterrupted operation even during peak business hours.
📊 Compact Yet Powerful
The 15-inch touch display delivers a wide, precise interface, optimizing transaction flow while saving valuable counter space for retail and hospitality environments.
⚡ Rapid Setup & Intuitive Use
As a 15 touch POS terminal, its easy installation and user-friendly interface enable businesses to start operating quickly with minimal effort.
🔒 Durable and Rugged Design
Built as a black POS machine from premium materials, it withstands continuous use, splashes, and other commercial demands with long-term reliability.
🌍 Global Distributor-Friendly Solutions
From OEM/ODM customization to efficient worldwide logistics, MatsudaPOS offers flexible solutions tailored for distributors across the globe.
🤝 Dedicated Support & Warranty
With a 36-month warranty and responsive global support, this pos machine gives you peace of mind, backed by our commitment to your operational success.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
