The ST9200 POS System comes in customizable colors. Black remains the top seller, while red, white and silver are also popular. Its minimalist and premium design looks especially stylish in vibrant finishes.

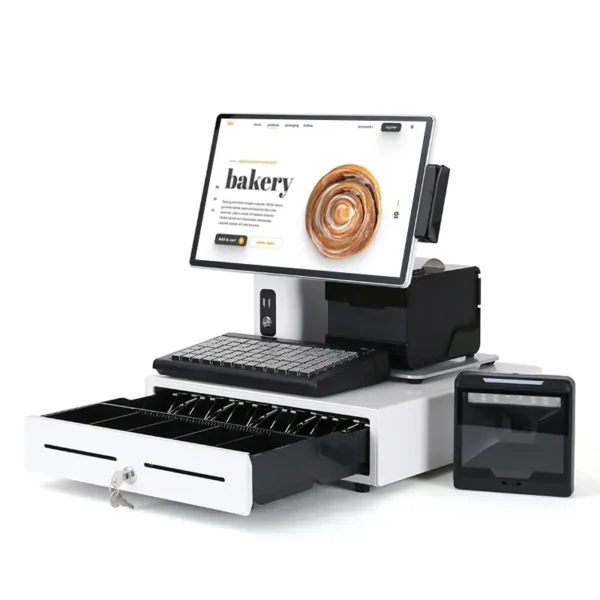

ST9200 15.6″ White POS Payment Terminal with MSR
PRODUCT FEATURES
Model: ST9200 POS payment terminal
Housing Material: Full-metal die-cast
Display: 15.6inch Capacitive Touch Panel 1366*768/1920*1080
Supported OS: Windows/ Linux/ Android
External Point of Sale Equipment Peripherals: MSR, 11.6″/15″/15.6″ Customer Display, Scanner & Printer Box.
The ST9200 is a professional POS payment terminal designed for retail environments, combining durability with advanced functionality. Built with a sturdy die-cast aluminum frame, it ensures reliable performance in high-frequency commercial settings.
This payment pos hardware features a neat and concealed wiring design, helping to maintain a clean and organized workspace.
Its flexible dual-screen configuration—rotatable up to 62° and available in multiple sizes: 11.6inch, 15inch, and 15.6inch.
The touchscreen POS equipment supports extensive peripheral connectivity and can be used as a versatile pay pos solution when paired with an optional all-in-one printer-scanner for enhanced integration and space efficiency, while maintaining full compatibility with mainstream motherboards.
Ideal for retail and hospitality businesses, these Wholesale Pay POS terminals provide a stable, customizable, and user-friendly experience for wholesale POS equipment purchasers and users.
Design Your POS
An optional customer display is available in 11.6", 15", or 15.6" sizes. The 15.6-inch display can be configured for vertical orientation, providing distributors with greater flexibility.
An all-in-one scan and print box is available. It can be mounted to the pos terminal base, attached to a swivel for rotation, or placed on the counter. Contact your sales rep before ordering.
Standard packaging is a yellow box, with colorful designs optional. Customize your logo on the pos device, the box, or provide your own design for production.
Key Features
Feature 1: A Neat and Concealed Wiring Design
- Full die-cast aluminum hardware: ensures sleek look, excellent heat dispersion, and long-lasting sturdiness for POS payment terminal
- Oversized base structure: delivers outstanding stability in use, perfect for high-intensity payment pos environments
- Tidy and hidden wiring: keeps a clean, professional workspace for pay pos setups
- Highly sought-after model: widely relied on in retail Wholesale Pay POS terminals programs for its ruggedness and elegant integration
Feature 2: Modular Expansion Pluggable MSR
- Pluggable MSR module: facilitates hassle-free upkeep in modern POS payment terminal hardware
- Interchangeable secondary displays: optional sizes (11.6″, 15″, 15.6″) enable flexible configurations for Wholesale Pay POS terminals
- Modular Touchscreen design: supports business-tailored customization and scalable upgrades for payment pos setups
- Cuts lifecycle expenses: a core advantage for volume pay pos purchasers
Feature 3: Ergonomic Dual-Screen Rotation for Adaptive Use
- 62° swivel displays: boost operator comfort in POS payment terminal setups
- Ergonomic structure: lessens physical fatigue during prolonged payment pos operations
- Elevates customer interaction: ideal for retail and hospitality pay pos hardware scenarios
Feature 4: All-in-One Printer-Scanner Option
- Sleek all-in-one printer-scanner: effortlessly matched with POS payment terminal setups
- 360° swivel accessory box: allows highly flexible receipt and code management for pay pos
- Multi-size base choices: fit varied counter space needs in payment pos deployments
- Space-saving integration: helps build clean, professional POS payment terminal hardware setups
- Tailorable configurations: available via our Wholesale Pay POS terminals program – reach out for details
Technical Specifications
ST9200 Product Specification Sheet
| Specification | Windows | Android |
|---|---|---|
| CPU |
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Processor N97(6M Cache, up to 3.60GHz) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption |
1 wifi&BT module, support WIFI 802.11b/g/n protocol 1 RJ45 Ethernet port, support Ethernet |
| OS Support | Linux, Windows 7/8/10, etc. | Android11, Android13 |
| Display Screen | 15.6inch True Flat Screen (16:9) | |
| Resolution | 1366*768/1920*1080 | |
| Touch Screen | Capacitive Touch | |
| Housing Material | Metal | |
| Power Supply | 12V, 5A/ 12V, 7A/ 12V, 10A | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size |
Single Screen 44.5cm*33cm*45cm (8.25KG) Dual Screen 44.5cm*36cm*45cm (10KG) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Interface | USB:6, COM:3, HDMI:1, DC:1, VGA:1, LAN:1, AU:2, DC:1, RJ11:1, COM:2, SIM:1, SD:1, LAN:1, AU:2 | |
| Option |
Customer Display: 11.6”/ 15”/ 15.6” Built-in: WIFI/ Bluetooth Reader: MSR/ RFID/ NFC/ IBUTTON |
|
CPU
Windows
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Android
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz
Memory
Windows
4GB, 8GB, 16GB
Android
4GB, 8GB
Hard Disk
Windows
128GB, 256GB, 512GB
Android
32GB, 64GB
Ethernet
Windows
10M/100M/1000M Self-adaption
Android
1 wifi&BT module, support WIFI 802.11b/g/n protocol
1 RJ45 Ethernet port, support Ethernet
1 RJ45 Ethernet port, support Ethernet
OS / Display / Others
OS: Linux, Windows 7/8/10 ; Android 11/13
Display: 15.6" True Flat (16:9), 1366×768 / 1920×1080
Touch: Capacitive ; Housing: Metal
Power: 12V 5A/7A/10A ; Colors: Black/White/Silver/Red/Orange
Package: Single 44.5×33×45cm (8.25KG) ; Dual 44.5×36×45cm (10KG)
Cert: ROHS, CE, FCC ; Interfaces: USB/COM/HDMI/DC/VGA/LAN/AU/RJ11/SIM/SD
| Area | Specification | Details |
|---|---|---|
| Scanner Area | Pixels | 300,000 |
| Scanning Depth | 2D: ≥7.5mil | |
| 1D: ≥3.9mil | ||
| View Angle | Diagonal 50° | |
| Scanning Angle |
Elevation: ±80° Deflection: ±70° Rotation: 360° |
|
| Printer Area | Printing Method | Direct Thermal Printing |
| Open Method | 1. Press the open cover wrench; 2, through the cover button | |
| Print Length | 100KM | |
| Cutter life | 1,000,000 Times | |
| Printing speed | 250 mm/s (max) | |
| Print span | 72mm (max) | |
| Paper roll diameter | ≤80mm | |
| Mechanical endurance | 100KM | |
| Power Supply | 24V/2A | |
| Material | Aluminium Alloy | |
| Size | 23cm × 12cm × 15.5cm | |
| Weight | 2.1kg | |
Scanner Area
Pixels
300,000
Scanning Depth
2D: ≥7.5mil
1D: ≥3.9mil
1D: ≥3.9mil
View Angle
Diagonal 50°
Scanning Angle
Elevation: ±80°
Deflection: ±70°
Rotation: 360°
Deflection: ±70°
Rotation: 360°
Printer Area
Printing Method
Direct Thermal Printing
Open Method
1. Press the open cover wrench; 2, through the cover button
Print Length
100KM
Cutter life
1,000,000 Times
Printing speed
250 mm/s (max)
Print span
72mm (max)
Paper roll diameter
≤80mm
Mechanical endurance
100KM
General
Power Supply
24V/2A
Material
Aluminium Alloy
Size
23cm × 12cm × 15.5cm
Weight
2.1kg
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
The 2023 partnership between MatsudaPOS and SIGMA Technology successfully introduced our modern, high-performance POS systems to Canadian retail chains, earning praise from store managers.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
we supplied custom touch displays to SRM Integration (Malaysia), a leading semiconductor test processor provider, meeting their unique integration needs for seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing,.
Taiwan – POSIFLEX Product Customization
The ST9200F modular POS system, custom-developed by MatsudaPOS for global leader POSIFLEX, has been a market success since its launch. This project exemplifies our capability to deliver on global OEM/ODM requests.
Why Choose MATSUDAPOS?
Superior Configuration & Performance
Equipped with top-notch Intel/Android processors, our POS payment terminal ensures smooth and efficient performance, guaranteeing seamless retail operations even during peak hours.
Premium, Space-Saving Design
Our Point of Sale Equipment features a high-end, minimalist design with integrated cable management and flexible peripheral options. It is ideal for space-constrained environments, maximizing counter space while maintaining full functionality.
Simplified Setup & Deployment
Our Wholesale Pay POS terminals are designed for easy installation and configuration, from add-on displays and card readers to scanners and printers. This enables both distributors and end-users to achieve rapid deployment with minimal effort.
Exceptional Durability
Constructed with reinforced metal, this pay pos equipment is built to endure the demands of all-day operation in tough environments, ensuring long-term reliability and reduced downtime.
Global Customization (OEM/ODM)
Our expert engineering team offers comprehensive OEM/ODM services, tailoring solutions to meet the specific requirements of global procurement partners and businesses worldwide.
Comprehensive Global Support
Backed by a 3-year warranty and worldwide technical support, our dedicated team is committed to ensuring the success of POS dealers and system integrators.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days; Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
