Matsudapos ST8500 15.6inch White New POS System with 15.6inch Customer Display & Fingerprint

PRODUCT FEATURES

Model: ST8500 new pos system

Housing Material: Full-metal die-cast

Display: 15.6-inch (Optional 15-inch)

CPU: i3-1215U, i5-1235U, N95

RAM: 8GB, 16GB, 32GB

HDD: 128GB, 256GB, 512GB (2 × M.2 Key-M 2280)

Supported OS: Windows / Linux / Android

External Cash Register Peripherals: MSR, Fingerprint, 11.6-inch/15.6-inch Customer Display

Certification: CE, FCC, ROHS, etc.



ST8800 POS system new arrival

NEW ARRIVAL

Model: ST8500

  • Hard drive and memory can be replaced by removing 1 screw
  • Only 4 screws are needed to remove the back cover of the machine
  • The IO interface is customized according to European and American style
GET A Quote

Product Features

With consistent supply chains and verified production standards, the ST8500 empowers distributors to offer reliable solutions with the latest POS system for bars and restaurants.

High-Brightness & Ultra-Slim LED Screen

📏 High-Brightness Ultra-Slim LED Display

  • Engineered for the new pos system market in hospitality; ultra-narrow bezel paired with a sleek 9mm thickness.
  • 350cd/㎡ brightness guarantees clear visibility, even in brightly lit bar and restaurant environments with the latest POS system.
  • 270° swivel screen boosts operator comfort, enhancing usability during peak service hours for food and beverage venues.

💨 Silent Fanless Motherboard

  • Custom fanless motherboard delivers quiet, stable performance for OEM ODM new POS terminals designed for bars and restaurants.
  • Passive cooling reduces CPU strain and prolongs device life, perfect for continuous operation needs in hospitality settings.
  • Aluminum-alloy casing improves heat dispersion, lowering failure rates and after-sales service requirements.
Fanless Motherboard for Silent Operation
Tool-Free Upgrades

⚙ Tool-Free Maintenance & Upgrades

  • Battery, HDD, and memory replacement requires just one screw removal—accelerating service for wholesale OEM ODM new POS terminals.
  • Lowers return rates and streamlines after-sales support; end-users can manage basic replacements independently.
  • Supports dual M.2 SSDs to deliver faster speeds and versatile storage configurations for the latest POS system.

🔧 Modular Design Architecture

  • Modular construction allows distributors to customize dual-screen new POS terminal setups for any bar or restaurant scenario.
  • Detachable components include MSR and customer display, enabling easy upgrades or system retrofits.
  • Optional 11.6"/15.6" secondary displays, plus compatibility with a third external monitor for professional configurations.
Modular Structure
Optional Interface

🔌 Expandable Interface Options

  • Expandable USB and powered OPOS ports provide flexible peripheral pairing for dual-screen new POS terminal installations in hospitality.
  • Color-coded power connections: Red = 24V×1, Blue = 12V×2; complemented by RJ12 OPOS ports.
  • Comprehensive I/O selection supports more devices, helping distributors secure venue-specific new pos system projects.

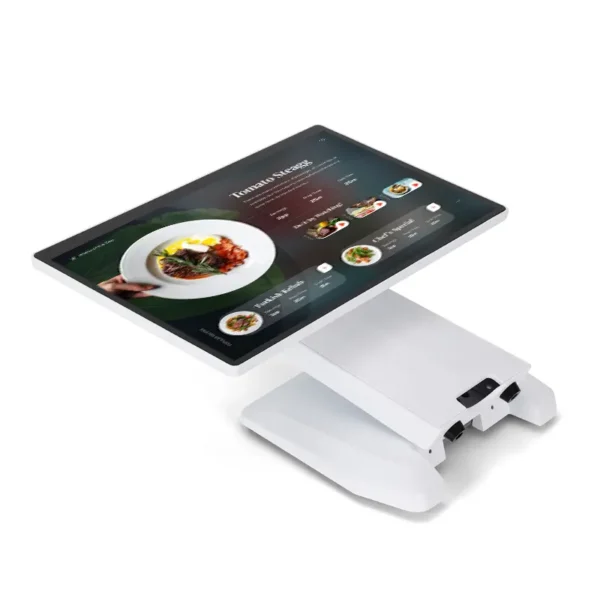

📦 Foldable Base Construction

  • Foldable base reduces shipping volume and weight, cutting logistics costs for bulk OEM ODM new POS terminals.
  • "Unfold-and-use" setup eliminates complex assembly, ideal for rapid deployment in bars and restaurants.
  • Enhances distributors' competitiveness through improved pricing, faster delivery, and simplified installation processes.
Foldable Base Design

Why Choose Matsudapos?

  • Full OEM/ODM Customization

  • 24/7 Quick Response Support

  • Professional Sales Team

  • Strict Quality Control

  • Competitive Cost Advantage

  • Dealer Protection Policy

Learn more about what Matsudapos can do for you.

Join our mailing list for more information about how Matsudapos’s solutions can serve your entire business.

*This information may be transcribed, used, and stored by third parties in accordance with our Privacy Policy.

Technical Specifications

ST8500 POS Specification

Specification Details
CPU Intel® Core™ i3-1215U (10M Cache, up to 4.40 GHz)
Intel® Core™ i5-1235U (12M Cache, up to 4.40 GHz)
Intel® Alder Lake-N N95 (6M Cache, up to 3.60 GHz)
Memory 8GB 16GB 32GB
Hard Disk 128GB 256GB 512GB (2 × M.2 Key-M 2280)
Ethernet 10M / 100M / 1000M Self-adaption
OS Support Windows 10/11, Linux, etc.
Display Screen 15.6" True Flat Screen (16:9)
Resolution 1920×1080
Touch Screen 10 Points Capacitive Touch
I/O Port USB2.0×4, DC-IN×1, USB3.0×2, RJ11×1, LAN×1, COM×2, Audio×1
Housing Material Metal
Power Supply 12V, 5A / 12V, 7A
Color Black / White (Customizable)
Package Size 43.5 × 16.5 × 41.5 cm (7.5KG)
Certification ROHS CE FCC
Options
Customer Display 11.6“ 15.6”
Built-in Wi-Fi Bluetooth Loudspeaker
Reader MSR RFID NFC IBUTTON

Pricing

Configuration
Specs
Recommendation Level
Entry-Level
N95 / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤
Mid-Tier
i3-1215U / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤
High-Performance
i5-1235U / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤❤

FAQ

Q1: How much does a POS system cost?

The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.

Q2: This is my first time importing POS equipment in bulk. What should I do?

Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.

Q3: Are you a real manufacturer?

Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.

Q4: What after-sales support do you provide?

We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.

Q5: What is your typical lead time?

Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.

Q6: What payment methods do you accept?

We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.

MatsudaPOS and the Environment

Made with 35% recycled material by weight.

Manufactured with 45% renewable electricity.

Ships in 100% biodegradable materials.
