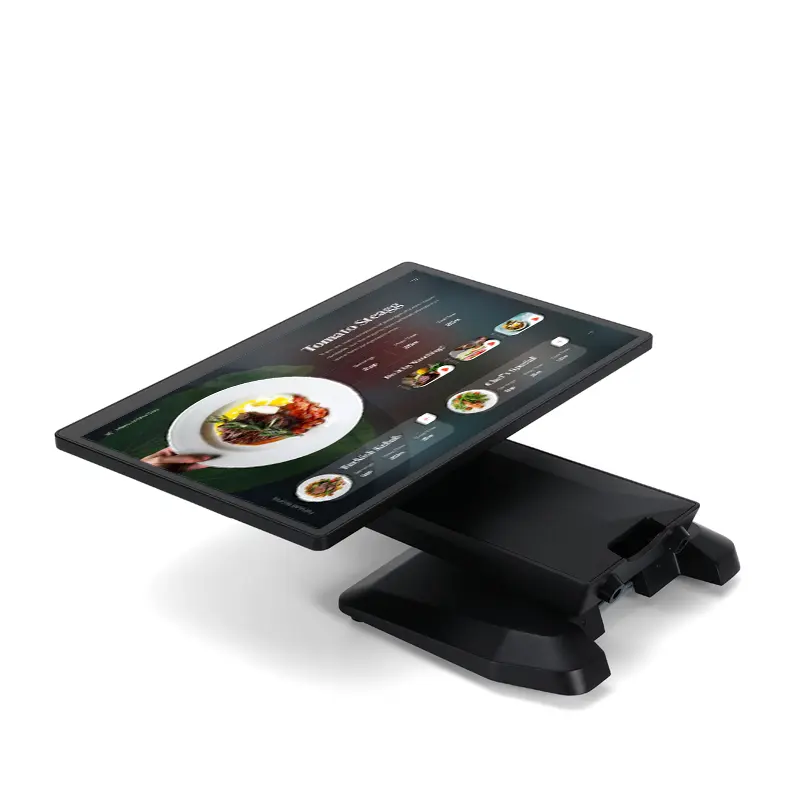

Matsudapos ST8500 15.6″ Black POS System with MSR for Gas Station

PRODUCT FEATURES

Model: ST8500 pos system for gas station

Housing Material: Full-metal die-cast

Display: 15.6-inch (Optional 15-inch)

CPU: i3-1215U, i5-1235U, N95

RAM: 8GB, 16GB, 32GB

HDD: 128GB, 256GB, 512GB (2 × M.2 Key-M 2280)

Supported OS: Windows / Linux / Android

External Cash Register Peripherals: MSR, Fingerprint, 11.6-inch/15.6-inch Customer Display

Certification: CE, FCC, ROHS, etc.



ST8800 POS system new arrival

NEW ARRIVAL

Model: ST8500

  • Hard drive and memory can be replaced by removing 1 screw
  • Only 4 screws are needed to remove the back cover of the machine
  • The IO interface is customized according to European and American style
GET A Quote

Product Features

With reliable supply chains and verified production standards, the ST8500 allows distributors to offer high-durability all-in-one POS system for gas station with full confidence.

High-Brightness & Ultra-Slim LED Screen

📏 High-Brightness & Ultra-Slim LED Display

  • Designed for the pos system for gas station sector; ultra-narrow bezel paired with a sleek 9mm thickness.
  • 350cd/㎡ brightness guarantees sharp visibility—perfect for Touchscreen gas station POS terminal setups exposed to strong ambient light.
  • 270° swivel screen boosts operator comfort, enhancing usability during peak hours at gas stations.

💨 Fanless Motherboard for Quiet Performance

  • Custom fanless motherboard delivers silent, steady operation for all-in-one POS system for gas station.
  • Passive cooling lowers CPU strain and prolongs service life—ideal for gas station operations demanding non-stop uptime.
  • Aluminum-alloy casing improves heat dispersion, reducing malfunctions and after-sales concerns.
Fanless Motherboard for Silent Operation
Tool-Free Upgrades

⚙ Tool-Free Maintenance & Upgrades

  • Battery, HDD, and memory replacements require just one screw removal—speeding service for Wholesale gas station POS systems.
  • Cuts return rates and simplifies after-sales support; even end-users can manage basic component swaps.
  • Supports dual M.2 SSDs for enhanced speed and versatile storage configurations.

🔧 Modular Configuration

  • Modular design lets distributors customize setups for any pos system for gas station application.
  • Detachable modules: MSR and customer display, enabling easy upgrades or retrofits.
  • Optional 11.6"/15.6" secondary displays, plus support for a third external monitor for professional configurations.
Modular Structure
Optional Interface

🔌 Expandable Interface Options

  • Expandable USB and powered OPOS ports—ideal for Touchscreen gas station POS terminal installations needing flexible peripheral pairing.
  • Color-coded power ports: Red = 24V×1, Blue = 12V×2; plus RJ12 OPOS ports for easy identification.
  • Comprehensive I/O selection supports more devices, helping distributors secure gas station-specific projects.

📦 Foldable Base Construction

  • Foldable base reduces shipping volume and weight—lowering logistics costs for bulk Wholesale gas station POS systems.
  • “Unfold-and-operate” setup eliminates complex assembly, perfect for fast gas station deployments.
  • Equips distributors with stronger advantages in pricing, delivery speed, and installation efficiency.
Foldable Base Design

Why Choose Matsudapos?

  • Full OEM/ODM Customization

  • 24/7 Quick Response Support

  • Professional Sales Team

  • Strict Quality Control

  • Competitive Cost Advantage

  • Dealer Protection Policy

Learn more about what Matsudapos can do for you.

Join our mailing list for more information about how Matsudapos’s solutions can serve your entire business.

*This information may be transcribed, used, and stored by third parties in accordance with our Privacy Policy.

Technical Specifications

ST8500 POS Specification

Specification Details
CPU Intel® Core™ i3-1215U (10M Cache, up to 4.40 GHz)
Intel® Core™ i5-1235U (12M Cache, up to 4.40 GHz)
Intel® Alder Lake-N N95 (6M Cache, up to 3.60 GHz)
Memory 8GB 16GB 32GB
Hard Disk 128GB 256GB 512GB (2 × M.2 Key-M 2280)
Ethernet 10M / 100M / 1000M Self-adaption
OS Support Windows 10/11, Linux, etc.
Display Screen 15.6" True Flat Screen (16:9)
Resolution 1920×1080
Touch Screen 10 Points Capacitive Touch
I/O Port USB2.0×4, DC-IN×1, USB3.0×2, RJ11×1, LAN×1, COM×2, Audio×1
Housing Material Metal
Power Supply 12V, 5A / 12V, 7A
Color Black / White (Customizable)
Package Size 43.5 × 16.5 × 41.5 cm (7.5KG)
Certification ROHS CE FCC
Options
Customer Display 11.6“ 15.6”
Built-in Wi-Fi Bluetooth Loudspeaker
Reader MSR RFID NFC IBUTTON

Pricing

Configuration
Specs
Recommendation Level
Entry-Level
N95 / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤
Mid-Tier
i3-1215U / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤
High-Performance
i5-1235U / 8GB RAM / 128GB SSD / WiFi / Speaker
❤❤❤❤❤

FAQ

Q1: How much does a POS system cost?

The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.

Q2: This is my first time importing POS equipment in bulk. What should I do?

Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.

Q3: Are you a real manufacturer?

Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.

Q4: What after-sales support do you provide?

We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.

Q5: What is your typical lead time?

Samples: around 7 days.
Mass production: around 30 days, depending on customization and order volume.

Q6: What payment methods do you accept?

We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.

MatsudaPOS and the Environment

Made with 35% recycled material by weight.

Manufactured with 45% renewable electricity.

Ships in 100% biodegradable materials.
