ST9200 15.6inch POS System with Printer and Scanner
- Core Functionality: All-in-one Point of Sale (POS) terminal and cash register solution.
- Display: 15.6″ LED Capacitive Touch Screen for intuitive operation.
- Performance & OS:
- Windows/Linux: Intel CPUs (N97, N100, J4125, J6412, Core i3/i5), up to 16GB RAM, up to 512GB SSD.
- Android: RK3288/RK3568 Quad-core CPUs, up to 8GB RAM, up to 64GB storage.
- Durability & Design: Aluminum alloy casing, hidden wiring, efficient heat dissipation.
- Connectivity: Comprehensive ports (USB, COM, LAN, HDMI/VGA, RJ11 for cash drawer).
- Integrated Peripherals:
- Barcode Scanner: High-speed 2D/1D scanning.
- Receipt Printer: Direct thermal, 250mm/s speed, auto-cutter.
- Customization: Optional secondary displays (11.6″/15″/15.6″), MSR/RFID/NFC/iButton readers.
Feature
- Intuitive Operator Interface: Features a vibrant 15.6-inch LED Capacitive Touch Screen, ensuring swift and accurate transaction input for your cash register operations.
- Versatile OS Compatibility: Supports multiple operating systems including Windows, Linux, and Android, allowing seamless integration with your preferred POS software and business applications.
- Robust & Cool Operation: Built with a durable Aluminum Alloy Casing incorporating efficient heat dissipation, guaranteeing reliability for continuous use in demanding retail and hospitality environments.
- Enhanced Customer Engagement: Offers optional customer-facing displays in 11.6-inch, 15-inch, or 15.6-inch sizes, perfect for displaying transaction details and promotions at the point of sale.
- Expanded Connectivity & Multimedia (Optional): Equipped with optional WIFI and Bluetooth for flexible network access and peripheral connection, alongside an optional loudspeaker for alerts and multimedia capabilities, enhancing the overall functionality of your POS system.
Your Elegant & Powerful Standalone Cashier
This premium POS terminal hardware is crafted for upscale restaurants and boutique retail. Clad in a rugged metal chassis with customizable hues, its responsive touchscreen and tactile metal keypad work in perfect harmony.
A high-speed barcode scanner and whisper-quiet thermal printer handle transactions effortlessly. With tool-free modular design, maintenance is a breeze, while its compact footprint maximizes counter space. Versatile USB/RS-232 ports seamlessly connect peripherals—no software restrictions, just pure POS hardware reliability. Silent, efficient, and built to last—your trusty POS terminal partner.
Printer and Scanner for POS
Born for luxury retail and fine dining, this standalone POS hardware combines brains and beauty in one sleek modular body. Its built-in scanning eye never misses a detail, while the silent printing partner delivers receipts with discreet efficiency—all in a compact, space-saving form.
Wrapped in a rugged metal. Plug-and-play ports (USB/RS-232) reach out to connect, no software strings attached.
Dress it in your brand’s colors—it’s ready to blend into your elegant space while working tirelessly behind the scenes.
Let’s talk business—our team can tailor this next-gen transaction partner to your needs, from specs to custom POS.
10 Point Ture Flat Capacitive Touch Screen
This POS terminal greets every touch with instant response – its 10-point capacitive touchscreen reads gestures like a natural conversation. Whether quick taps or multi-finger commands, the ultra-responsive interface keeps transactions flowing smoothly.
10 Point Ture Flat Capacitive Touch Screen
The industrial-grade touch panel stays precise even during rush hours, with palm rejection technology that prevents accidental inputs. Like an attentive cashier, it understands exactly what you need – no second touches required.
Specification
| Windows | Android | |||||||||
| CPU | Intel Processor N97 (6M Cache, up to 3.60 GHz) | Rk3288 Quad-core Cortex-A17 up to 1.8GHz | RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz | |||||||
| Intel Processor N100(6M Cache, up to 3.40GHz) | ||||||||||
| Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) | ||||||||||
| Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) | ||||||||||
| Intel Core i3 Dual Core (the 10th, 11th gen) | ||||||||||
| Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) | ||||||||||
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB | ||||||||
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB | ||||||||
| Ethernet | 10M/100M/1000M Self-adaption | 1wifi&BT module, | ||||||||
| support WIFI 802.11b/g/n protocol | ||||||||||
| 1 RJ45 Ethernet port, support Ethernet | ||||||||||
| OS Support | Linux, Windows 7/8/10, etc. | Android 4.1-11 | ||||||||
| Display Screen | 15.6inch True Flat Screen (16:9) | |||||||||
| Resolution | 1366*768/1920*1080 | |||||||||
| Touch Screen | Capacitive Touch | |||||||||
| Housing Material | Metal | |||||||||
| Power Supply | 12V, 5A/12V, 7A/12V, 10A | |||||||||
| Color | Black/White/Silver/Red/Orange (Customizable) | |||||||||
| Package Size | Single Screen 44.5cm*33cm*45cm(8.25KG) | |||||||||
| Dual Screen 44.5cm*36cm*45cm (10KG) | ||||||||||
| Certification | ROHS, CE, FCC, etc. | |||||||||
| Interface | USB | COM | HDMI/VGA | DC | LAN | AU | RJ11 | SIM&SD | ||
| 6 | 3 | 1 | 1 | 1 | 2 | 1 | 1 | |||
| Option | Customer Display | 11.6”/15”/15.6” | ||||||||
| Built-in | WIFI/Bluetooth | |||||||||
| Reader | MSR/RFID/NFC/IBUTTON | |||||||||
| Packaging Box | Carton | |||||||||
| Scanner Area | ||||
| Pixels | 300,000 | |||
| Scanning Depth | 2D | ≥7.5mil | ||
| 1D | ≥3.9mil | |||
| View Angle | Diagonal 50° | |||
| Scanning Angle | Elevation | ±80° | ||
| Deflection | ±70° | |||
| Rotation | 360° | |||
| Advantage | The global exposure lens is combined with fast grasping technology to realize fast reading of paper in the process of movement. | |||
| Printer Area | ||||
| Printing Method | Direct Thermal Printing | |||
| Open Method | 1. Press the open cover wrench | |||
| 2. Through the cover button | ||||
| Print Length | 100KM | |||
| Cutter life | 1000000 Times | |||
| Printing speed | 250 mm/s(max) | |||
| Print span | 72mm(max) | |||
| Paper roll diameter | ≤80mm | |||
| Mechanical endurance | 100KM | |||
| Advantage | The printing module adopts the line thermal printing head, which has the characteristics of high-speed printing, low noise, strong reliability, high printing quality, compact structure and so on. | |||
| General Specifications | ||||
| Power Supply | 24V/2A | |||
| Material | Aluminum Alloy | |||
| Size | 23cm*12cm*15.5cm | |||
| Weight | 2.1kg | |||
*product specifications and model configurations are subject to change and may vary by global region.
Optional Accessory
Printer & Scanning Box

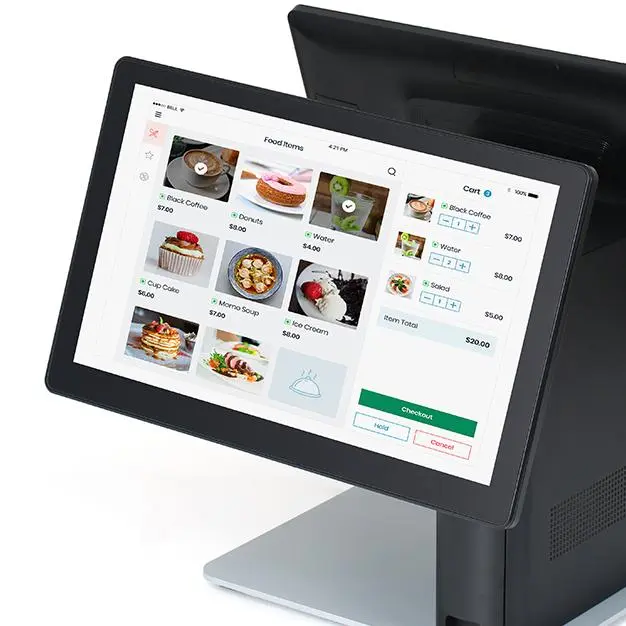

15.6inch Custoner Display

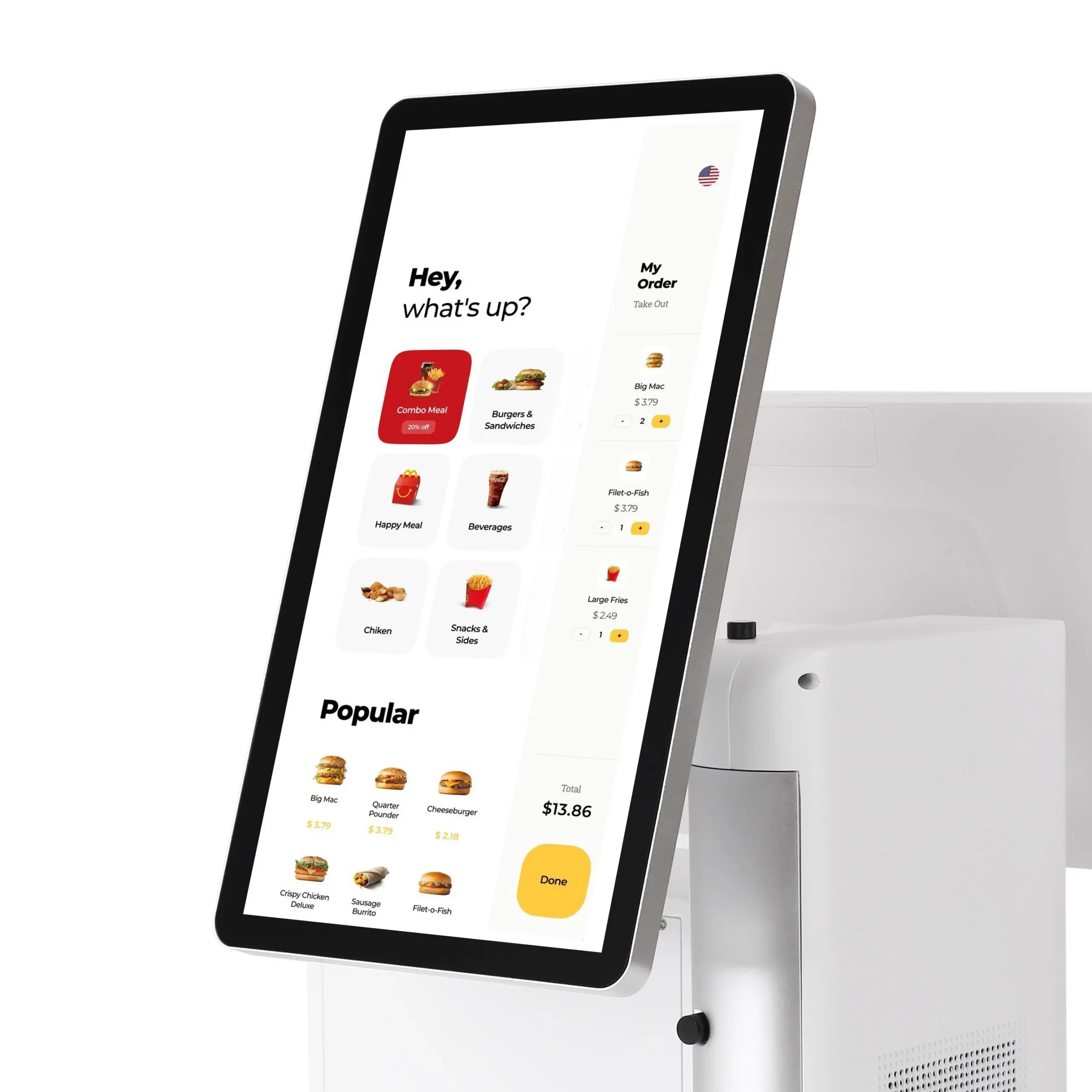

15.6inch Custoner Display(Portrait Screen)
