The ST9200 POS System comes in customizable colors. Black remains the top seller, while red, white and silver are also popular. Its minimalist and premium design looks especially stylish in vibrant finishes.

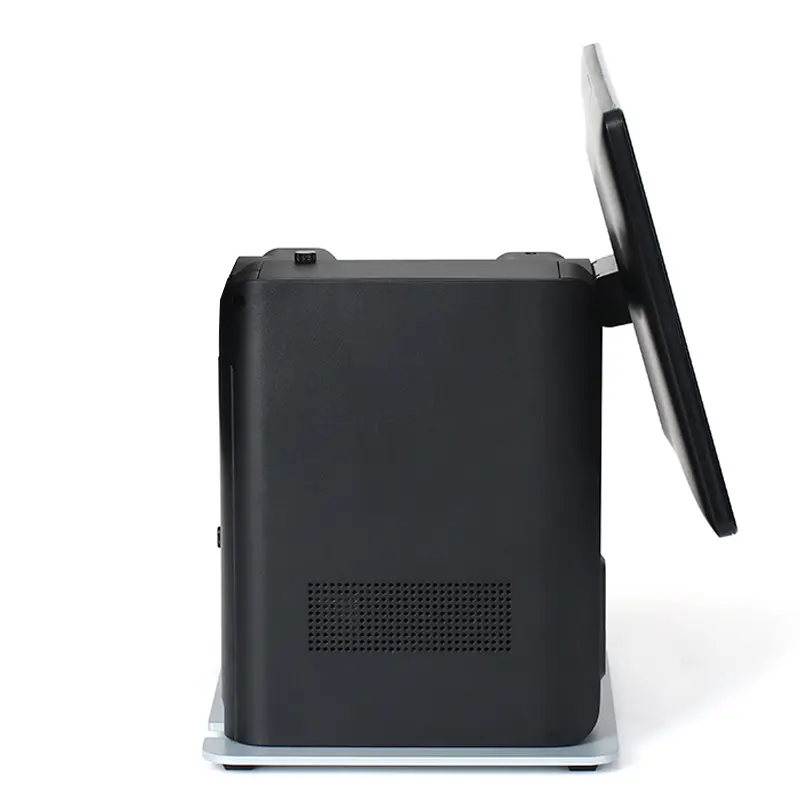

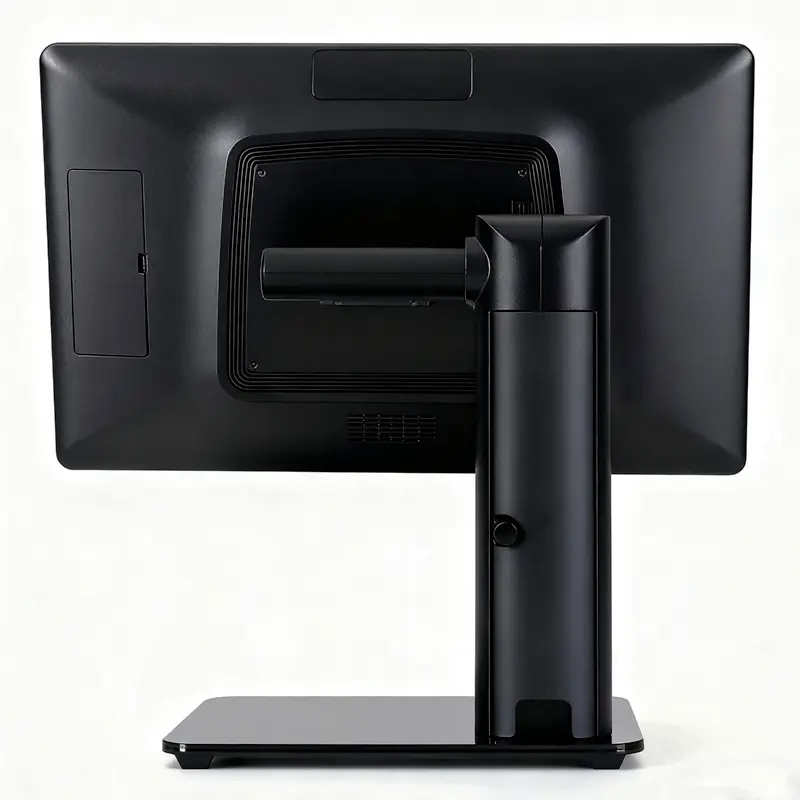

ST9200 Black 15.6″ Wholesale All-in-one Touchscreen Cash Register Machine
PRODUCT FEATURES
Model: ST9200 cash register machine
Housing Material: Full-metal die-cast
Display: 15.6inch Capacitive Touch Panel 1366*768/1920*1080
Supported OS: Windows/ Linux/ Android
External Point of Sale Equipment Peripherals: MSR, 11.6″/15″/15.6″ Customer Display, Scanner & Printer Box.
The ST9200 is a professional cash register machine designed for retail environments, combining durability with advanced functionality. Built with a sturdy die-cast aluminum frame, it ensures reliable performance in high-frequency commercial settings.
This Touchscreen cash register machine features a neat and concealed wiring design, helping to maintain a clean and organized workspace.
Its flexible dual-screen configuration—rotatable up to 62° and available in multiple sizes: 11.6inch, 15inch, and 15.6inch.
The All-in-one cash register POS machine features extensive peripheral connectivity. It can be paired with an optional all-in-one printer-scanner for enhanced integration and space efficiency, and maintains full compatibility with mainstream motherboards.
Ideal for retail and hospitality businesses, it provides a stable, customizable, and user-friendly experience for Wholesale cash register machines purchasers and users.
Design Your POS
An optional customer display is available in 11.6", 15", or 15.6" sizes. The 15.6-inch display can be configured for vertical orientation, providing distributors with greater flexibility.
An all-in-one scan and print box is available. It can be mounted to the pos terminal base, attached to a swivel for rotation, or placed on the counter. Contact your sales rep before ordering.
Standard packaging is a yellow box, with colorful designs optional. Customize your logo on the pos device, the box, or provide your own design for production.
Key Features
Feature 1: A Neat and Concealed Wiring Design
- Full die-cast aluminum All-in-one cash register POS machine hardware: guarantees a smooth look, top-tier heat dispersion, and lasting sturdiness
- Extra-large base structure: delivers outstanding steadiness during use, ideal for high-intensity cash register machine environments
- Neat and hidden wiring: keeps a clean, professional Touchscreen cash register machine workspace
- Highly sought-after model: widely relied on in retail Wholesale cash register machines programs for its toughness and graceful integration
Feature 2: Modular Expansion Pluggable MSR
- Pluggable MSR module: allows simple upkeep in modern All-in-one cash register POS machine hardware
- Interchangeable secondary displays: optional sizes cover 11.6″, 15″, and 15.6″ for flexible Wholesale cash register machines configurations
- Modular Touchscreen cash register machine design: supports business-specific personalization and scalable updates
- Cuts lifecycle expenses: a key benefit for high-volume Point of Sale buyers, ideal for cash register machine
Feature 3: Ergonomic Dual-Screen Rotation for Adaptive Use
- 62° rotatable displays: boost operator comfort in Touchscreen cash register machine
- Ergonomic structure: lessens physical fatigue during extended Point of Sale operations with All-in-one cash register POS machine
- Boosts customer interaction: perfect for retail and hospitality cash register machine settings
- Flexible viewing angles: a valued trait in customizable Wholesale cash register machines solutions
Feature 4: All-in-One Printer-Scanner Option
- Compact all-in-one printer-scanner: easily matched with Touchscreen cash register machine
- 360° rotatable accessory box: allows highly flexible receipt and code processing
- Multi-size base choices: fit varied counter space needs in Point of Sale deployments with All-in-one cash register POS machine
- Space-saving integration: helps build clean, professional cash register machine setups
- Customizable setups: available via our Wholesale cash register machines program – contact us for specifics
Technical Specifications
ST9200 Product Specification Sheet
| Specification | Windows | Android |
|---|---|---|
| CPU |
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen) Intel Core i3 Dual Core (the 10th, 11th gen) Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz) Intel Celeron Processor J4125(4M Cache, up to 2.70GHz) Intel Processor N100(6M Cache, up to 3.40GHz) Intel Processor N97(6M Cache, up to 3.60GHz) |
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz |
| Memory | 4GB, 8GB, 16GB | 4GB, 8GB |
| Hard Disk | 128GB, 256GB, 512GB | 32GB, 64GB |
| Ethernet | 10M/100M/1000M Self-adaption |
1 wifi&BT module, support WIFI 802.11b/g/n protocol 1 RJ45 Ethernet port, support Ethernet |
| OS Support | Linux, Windows 7/8/10, etc. | Android11, Android13 |
| Display Screen | 15.6inch True Flat Screen (16:9) | |
| Resolution | 1366*768/1920*1080 | |
| Touch Screen | Capacitive Touch | |
| Housing Material | Metal | |
| Power Supply | 12V, 5A/ 12V, 7A/ 12V, 10A | |
| Color | Black/ White/ Silver/ Red/ Orange (Customizable) | |
| Package Size |
Single Screen 44.5cm*33cm*45cm (8.25KG) Dual Screen 44.5cm*36cm*45cm (10KG) |
|
| Certification | ROHS, CE, FCC, etc. | |
| Interface | USB:6, COM:3, HDMI:1, DC:1, VGA:1, LAN:1, AU:2, DC:1, RJ11:1, COM:2, SIM:1, SD:1, LAN:1, AU:2 | |
| Option |
Customer Display: 11.6”/ 15”/ 15.6” Built-in: WIFI/ Bluetooth Reader: MSR/ RFID/ NFC/ IBUTTON |
|
CPU
Windows
Intel Core i5 Dual Core (the 8th, 10th, 11th, 12th gen)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Intel Core i3 Dual Core (the 10th, 11th gen)
Intel Celeron Processor J6412(1.5M Cache, up to 2.60GHz)
Intel Celeron Processor J4125(4M Cache, up to 2.70GHz)
Intel Processor N100(6M Cache, up to 3.40GHz)
Intel Processor N97(6M Cache, up to 3.60GHz)
Android
RK3568 Quad-core ARM Cortex A55 up to 1.8GHz/2.0GHz
Memory
Windows
4GB, 8GB, 16GB
Android
4GB, 8GB
Hard Disk
Windows
128GB, 256GB, 512GB
Android
32GB, 64GB
Ethernet
Windows
10M/100M/1000M Self-adaption
Android
1 wifi&BT module, support WIFI 802.11b/g/n protocol
1 RJ45 Ethernet port, support Ethernet
1 RJ45 Ethernet port, support Ethernet
OS / Display / Others
OS: Linux, Windows 7/8/10 ; Android 11/13
Display: 15.6" True Flat (16:9), 1366×768 / 1920×1080
Touch: Capacitive ; Housing: Metal
Power: 12V 5A/7A/10A ; Colors: Black/White/Silver/Red/Orange
Package: Single 44.5×33×45cm (8.25KG) ; Dual 44.5×36×45cm (10KG)
Cert: ROHS, CE, FCC ; Interfaces: USB/COM/HDMI/DC/VGA/LAN/AU/RJ11/SIM/SD
| Area | Specification | Details |
|---|---|---|
| Scanner Area | Pixels | 300,000 |
| Scanning Depth | 2D: ≥7.5mil | |
| 1D: ≥3.9mil | ||
| View Angle | Diagonal 50° | |
| Scanning Angle |
Elevation: ±80° Deflection: ±70° Rotation: 360° |
|
| Printer Area | Printing Method | Direct Thermal Printing |
| Open Method | 1. Press the open cover wrench; 2, through the cover button | |
| Print Length | 100KM | |
| Cutter life | 1,000,000 Times | |
| Printing speed | 250 mm/s (max) | |
| Print span | 72mm (max) | |
| Paper roll diameter | ≤80mm | |
| Mechanical endurance | 100KM | |
| Power Supply | 24V/2A | |
| Material | Aluminium Alloy | |
| Size | 23cm × 12cm × 15.5cm | |
| Weight | 2.1kg | |
Scanner Area
Pixels
300,000
Scanning Depth
2D: ≥7.5mil
1D: ≥3.9mil
1D: ≥3.9mil
View Angle
Diagonal 50°
Scanning Angle
Elevation: ±80°
Deflection: ±70°
Rotation: 360°
Deflection: ±70°
Rotation: 360°
Printer Area
Printing Method
Direct Thermal Printing
Open Method
1. Press the open cover wrench; 2, through the cover button
Print Length
100KM
Cutter life
1,000,000 Times
Printing speed
250 mm/s (max)
Print span
72mm (max)
Paper roll diameter
≤80mm
Mechanical endurance
100KM
General
Power Supply
24V/2A
Material
Aluminium Alloy
Size
23cm × 12cm × 15.5cm
Weight
2.1kg
Pleasant Success Stories
Successful Collaboration with Canadian Chain Store
The 2023 partnership between MatsudaPOS and SIGMA Technology successfully introduced our modern, high-performance POS systems to Canadian retail chains, earning praise from store managers.
Malaysia – Customized Touch Display Solutions for Semiconductor Industry
we supplied custom touch displays to SRM Integration (Malaysia), a leading semiconductor test processor provider, meeting their unique integration needs for seamless collaboration.
Iraq Customer – OEM Packaging Customization
Our long-term partner, Morabaa Sales Point, has worked with MatsudaPOS for over five years. Beyond supplying POS hardware with customized logo printing,.
Taiwan – POSIFLEX Product Customization
The ST9200F modular POS system, custom-developed by MatsudaPOS for global leader POSIFLEX, has been a market success since its launch. This project exemplifies our capability to deliver on global OEM/ODM requests.
Why Choose MATSUDAPOS?
Superior Configuration & Performance
Equipped with top-tier Intel/Android processors, our cash register machine delivers seamless and efficient performance, ensuring smooth retail operations even during peak hours.
Elegant, Space-Efficient Design
Our Touchscreen cash register machine boasts a sleek, minimalist design with integrated cable management and versatile peripheral options. Ideal for space-limited environments, it maximizes counter space while maintaining full functionality.
Effortless Setup & Deployment
From additional displays and card readers to scanners and printers, our Wholesale cash register machines are designed for easy installation and configuration. This allows both distributors and end-users to achieve rapid deployment with minimal effort.
Outstanding Durability
Constructed with reinforced metal, our All-in-one cash register POS machine is built to withstand the rigors of all-day operation in challenging environments, ensuring long-term reliability and minimal downtime.
Global Customization (OEM/ODM)
Our expert engineering team offers comprehensive OEM/ODM services, customizing solutions to meet the specific needs of global procurement partners and businesses around the world. Our cash register machine can be tailored to fit any requirement.
Comprehensive Global Support
Backed by a 3-year warranty and worldwide technical support, our dedicated team is committed to ensuring the success of POS dealers and system integrators.
FAQ
Q1: How much does a POS system cost?
Answer: The price depends on your configuration choices such as motherboard, memory, storage, and I/O ports, as well as any customization and order quantity. Please contact us directly for a tailored quotation.
Q2: Can I get a better price?
Answer: Yes. If we establish a long-term partnership, we will definitely offer you competitive wholesale pricing.
Q3. Why are your prices higher than some other suppliers?
Answer: Product quality is our lifeline. We will never cut costs by compromising on quality. Every device is built to last and tested under strict standards.
Q4. This is my first time importing POS equipment in bulk. What should I do?
Answer: Simply contact us. Our sales team will guide you step by step through the entire process. If needed, we can provide door-to-door service from production to delivery.
Q5. Are you a real manufacturer?
Answer: Absolutely. You are welcome to visit our factory at any time. Alternatively, we can arrange a live video call to show you our production facilities.
Q6. What after-sales support do you provide?
Answer: We offer 3 years warranty on POS devices. Our professional engineers are available for remote support to solve any technical issues quickly.
Q7. What are the benefits of becoming a distributor?
Answer: We protect our partners’ interests. Once you become our authorized distributor, we will stop supplying the same product model directly in your region.
Q8. How can I be assured of your product quality?
Answer: We can provide a complete list of component brands and specifications. Quality control and durability testing are conducted on every shipment.
Q9. What is your typical lead time?
Answer: Samples: around 7 days; Mass production: around 30 days, depending on customization and order volume.
Q10. What payment methods do you accept?
Answer: We accept T/T, L/C, PayPal, and also support ordering via Alibaba International. For other payment options, please contact us directly.
